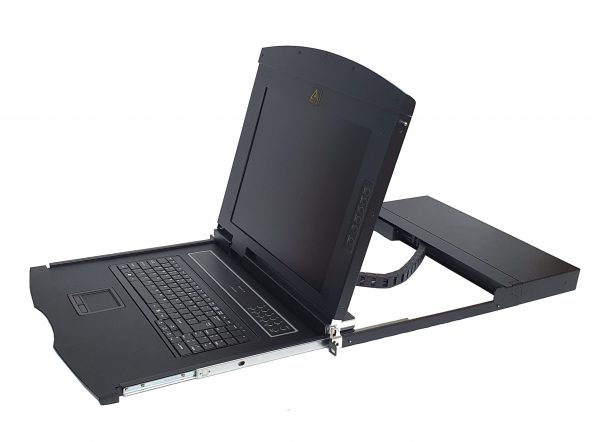

AL-H708L – 8-Port PS/2-USB HDMI Single Rail LCD KVM Switch
Angustos AL-H708L LCD KVM Switch is
optimized for high density Rack in modern
Data Center. Supporting Full HD resolution for
high end computers / servers.
- CONNECTION DIAGRAM
- Store Policies
Angustos AL-H708L LCD KVM Switch is optimized for high density Rack in modern Data Center. Supporting Full HD resolution for high end computers / servers.
Integrating a 17.3” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The short-depth design ultilized for narrow space for short-rack mounting in
condensed area. The AL-H708L can control up to 8 computers; with 8 additional KVM switches are cascaded, a single AL-H708L LCD KVM Switch can control up to 128 computers.
In addition, the AL-H708L included an additional hot-pluggable USB port that supports other keyboard and mouse for back-up. With all of the technology involved,
the AL-H708L LCD KVM Swtich has gone beyond the expectations and requirements for a modern Data Center use, which including :
short space optimization, exceptional display quality, easy to install, extreme versatility.
High Density Utilization
• Front USB for back up mouse-keyboard.
• LCD KVM console with an 17.3” LED-backlit
16:9 LCD monitor in a single rail design.
• Short-depth overall size allowing user to work
with in condensed space of high density Rack
• Slide Lock – secure the console drawer to
remain firmly in slide position when not in use.
• Extender compatible – Can be combined with
Angustos KVM Extender up to 60m.
• Superior video quality – up to 1920 x 1080
@60Hz; DDC2B; 16.7 Mil. Color.
• Cascade up to 128 computers from a single
console (With compatible KVM Switches)
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and
USB) for seamless switching.
• Computer selection with pushbuttons, hotkeys,
and multilingual on-screen display (OSD).
• Two level password security.
• Operates with all software and operating
systems including all Windows versions, DOS,
Linux, Unix, BSD, all Sun OS, all Mac OS and
• Keyboard Language supports: English (UK),
English (US), German (GER.) Japanese, Korean,
Russian, Swedish, Chinese.
• Standard rack mount kit included
• No software required – Plug and Play
• Firmware upgradable
• Supports hot-plugging
