AL-UV708L – 8-Port USB CATx Single Rail LCD KVM Switch

Angustos AL-UV708L LCD KVM Switch is
optimized for high density Rack in modern
Data Center.

Compare

Description

Angustos AL-UV708L LCD KVM Switch is optimized for high density Rack in modern
Data Center.

Integrating a 17” LED screen, keyboard and mouse pad in a 1U rackmountable sliding
housing. The short-depth design ultilized for narrow space for short-rack mounting in
condensed area. The AL-UV708L can control up to 08 computers; with 8 additional KVM
switches are cascaded, a single AL-UV704L LCD KVM Switch can control up to 128 computers.

In addition, the AL-UV708L included an additional hot-pluggable USB port that
supports other keyboard and mouse for back-up. With all of the technology involved, the
AL-UV708L LCD KVM Switch has gone beyond the expectations and requirements for
a modern Data Center use, which including :
short space optimization, exceptional display quality, easy to install, extreme versatility.

FEATURES

High Density Utilization
• Front USB for back up mouse-keyboard.
• Connect to servers with distance up to 40m
with single Cat5e / 6 UTP cable
• LCD KVM console with an 17” LED-backlit 4:3
LCD monitor in a single rail design.
• Short-depth overall size allowing user to work
with in condensed space of high density Rack
• Slide Lock – secure the console drawer to
remain firmly in slide position when not in use.
Flexible compatibility
• Superior video quality – up to 1280 x 1024
@60Hz; DDC2B; 16.7 Mil. Color.
• Cascade up to 128 computers from a single
console (With compatible KVM Switches)
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and
USB) for seamless switching.
• Computer selection with pushbuttons, hotkeys,
and multilingual on-screen display (OSD).
• Two level password security.
• Operates with all software and operating
systems including all Windows versions, DOS,
Linux, Unix, BSD, all Sun OS, all Mac OS and
NetWare.
• Keyboard Language supports: English (UK),
English (US), German (GER.) Japanese, Korean,
Russian, Swedish, Chinese.
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Firmware upgradable
• Supports hot-plugging
• Supports Over IP Module for Remote Control

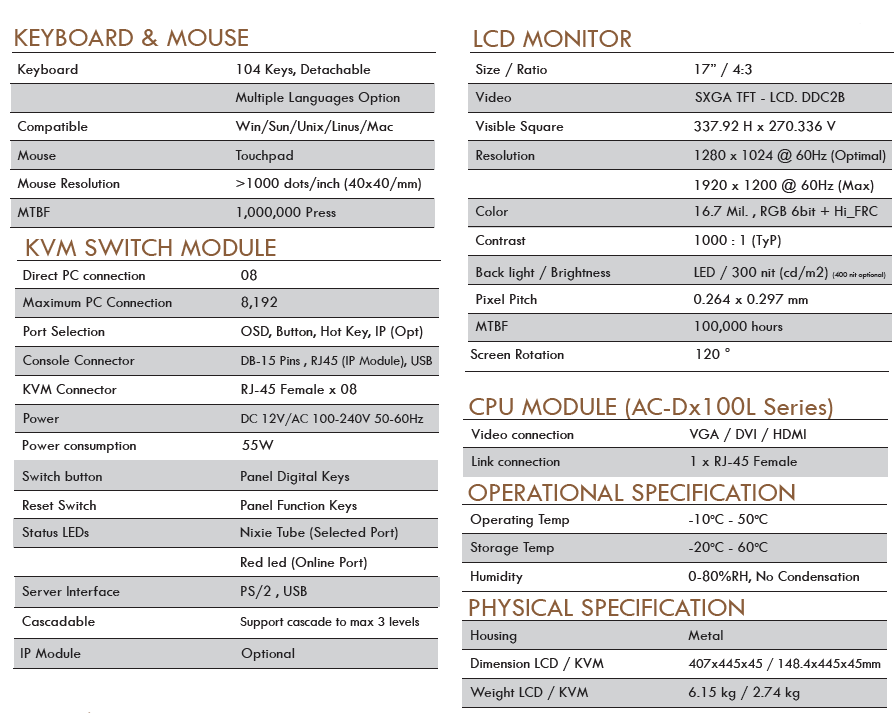

SPECIFICATION

CONNECTION DIAGRAM

DOWNLOAD
