Enterprise Video Wall Controller


Unlocking the differenceawesome experience of Video Wall Technology!

Global Reach, Unmatched Performance. Join the Ranks of million Happy Customers!

Hardware Based Design

High performance video processing equipment with hardware architecture design
  • No more computer high-end specification.
  • No more high-end Graphic Processing Unit (GPU Card).
  • No more licenses.
  • No more blue-screen OS crash.
  • No more viruses and black screen.
  • No more ransomwares, lost data.
  • Support up to 92 input x 72 output or 88 input x 60 output

FPGA Dedicated Chipset

Dedicated Field Programmable Gate Array (FPGA – Tritium™ 2 nd gen – 2280 Gbps) chipset is a combination of processing unit that dedicated in video signal. This eliminated the limitation of a CPU or a GPU from conventional Software or PC controller. The unit supports 24/7 working time with over 60,000 hours MTBF.

Without the use of PCI – Express card, the unit can work flawlessly when adding or editing the total layout of the videowall set up. As each of the FPGA chip is working independently, user can replace or add new input / output card without turning off the whole chassis.

Module design with Hot Swap

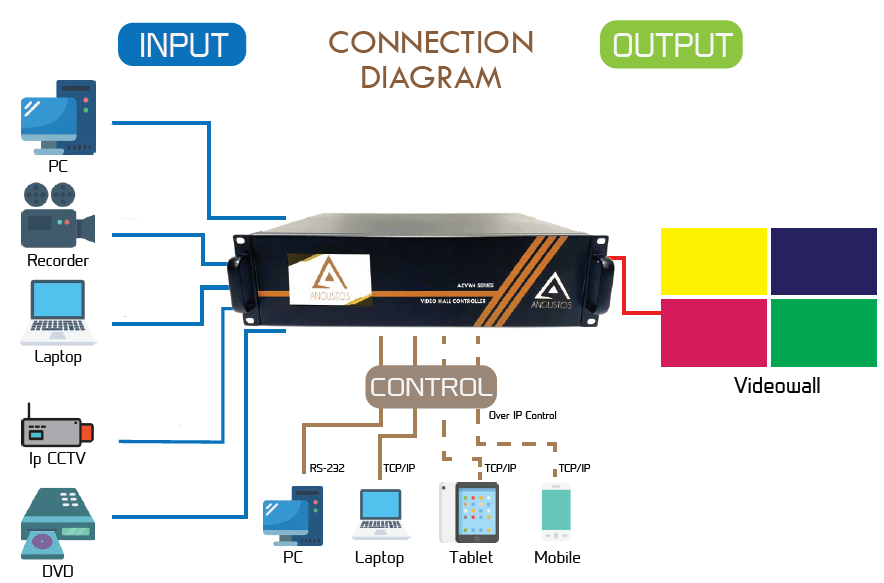

Multiple form of connections for client to custom fit their system. Client can now combine HDMI – DVI – VGA – HDBaseT – IP Streaming in one total solution, maximizing system integration for IT Rack (19’’)

Reduce the total cost of investment in both pre & post phase of expansion. Chassis also support control multiple videowalls, further simplify the complexity of connections and management.

Our Specialized Features

Take Your Displays to the Next Level

Multi Layers



Support 4 Layers MPiP™, up to 8 Layers-Matrix Picture in Picture (MPiP™) in each screen

*8 Layers MPiP™ configuration will allocate double output video bandwidth on each port, the total number of output operational ports will be reduced in half.

Drag & Drop



Customize complex layout with simple Click – Drag – Drop

Flexibility Control

High-end Flexibility Video Wall Control

High-end Flexibility Video Wall Control

Overlap, Roaming, Stretching, Zoom in / out

Touch Screen

Front Panel Touch Screen

Front Panel Touch Screen

Control scene mode, save / recall profile (up to 32), IP setting with just a touch

iDirect Stream™

IP Camera Direct Stream (iDirect Stream™)

IP Camera Direct Stream (iDirect Stream™)

IP input Card can support streaming video feed direct from IP CCTV Cameras.

Background Image

Background Image - Scrolling Text – Scheduling

Background Image - Scrolling Text – Scheduling

Support Static Background Image and Scrolling Text for Bank and Stock house Video Wall Support scene mode Scheduling – Cycle for advertising – digital signage Video Wall


WEB GUI control (Opt)

WEB GUI control (Opt)

Control the video wall controller directly from TCP/IP without the need of installing any software
