KVM0808K6P – HDMI 4K MATRIX

Description

• HDMI 2.0, HDCP 2.2
• HDCP 1.4 and DVI 1.0 compliant
• 18Gbps HDMI 2.0. 4K@60Hz 4:4:4
• 1080p backward scaler EDID
• De-embedded analog audio outputs
• ARC, CEC and Smart EDID
• Web GUI for TCP/IP control
• Advanced EDID management supported
• Front panel, RS-232, IR remote control

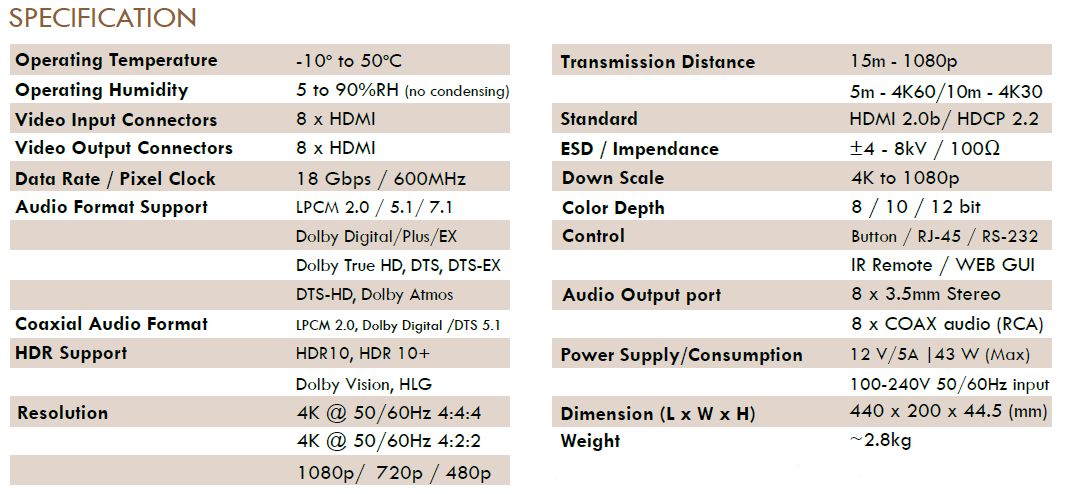

Specification

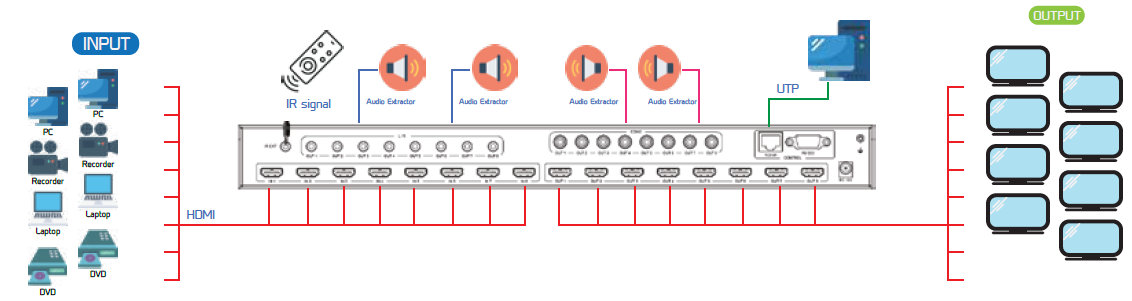

CONNECTION DIAGRAM

DOWNLOAD
