KVE804FK6- HDMI 4K Fiber Extender – Support [email protected] 4:4:4

Description

• Support resolution upto [email protected], YUV4:4:4 HDR.
• Transmit distance up to 60KM over Single mode,
  (Multi mode upto 300m) fiber module Single /Duplex fiber (Optional) cable.
• Support bandwidth upto 18Gbps.
• Without latency.
• Support HDCP2.2 input, HDCP2.2 output.
• Support HDCP1.4 input, HDCP1.4 output.
• Support RS232 Bi-direction pass through.
• With Automatic EDID for rapid integration of source and display.
• Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™

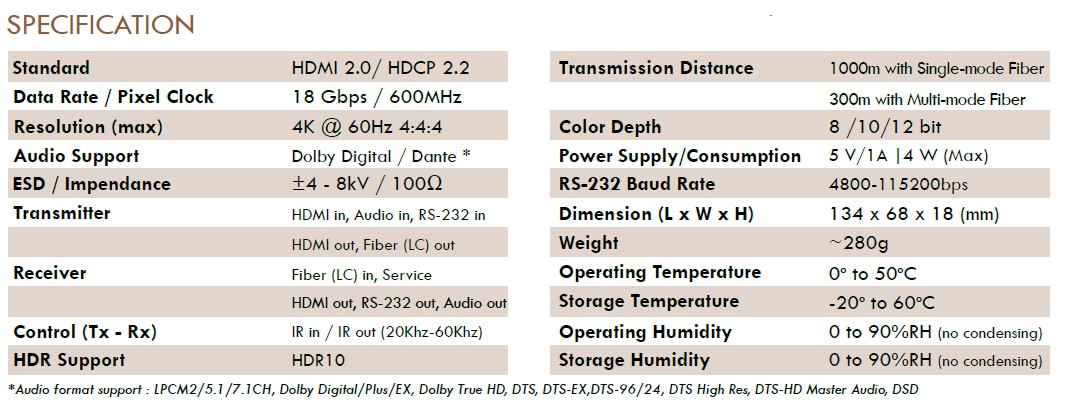

Specification

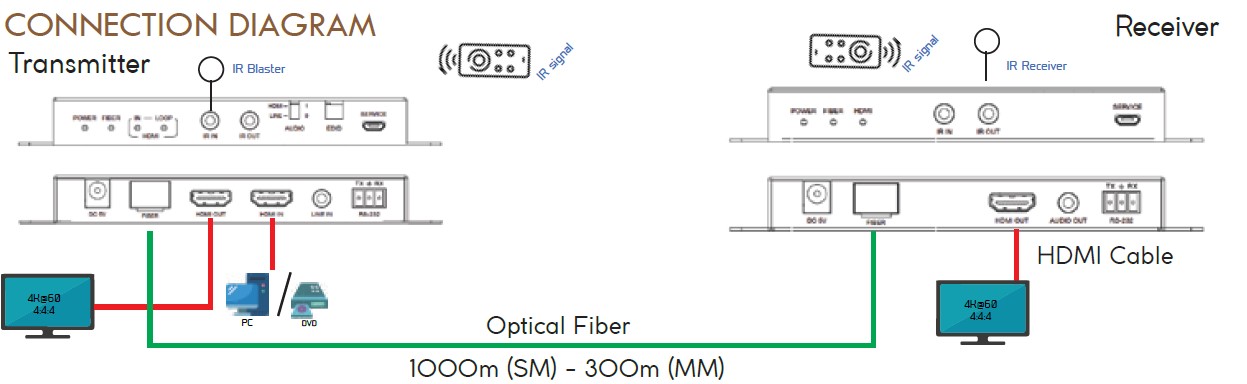

CONNECTION DIAGRAM

DOWNLOAD
