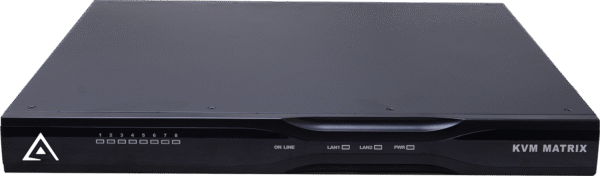

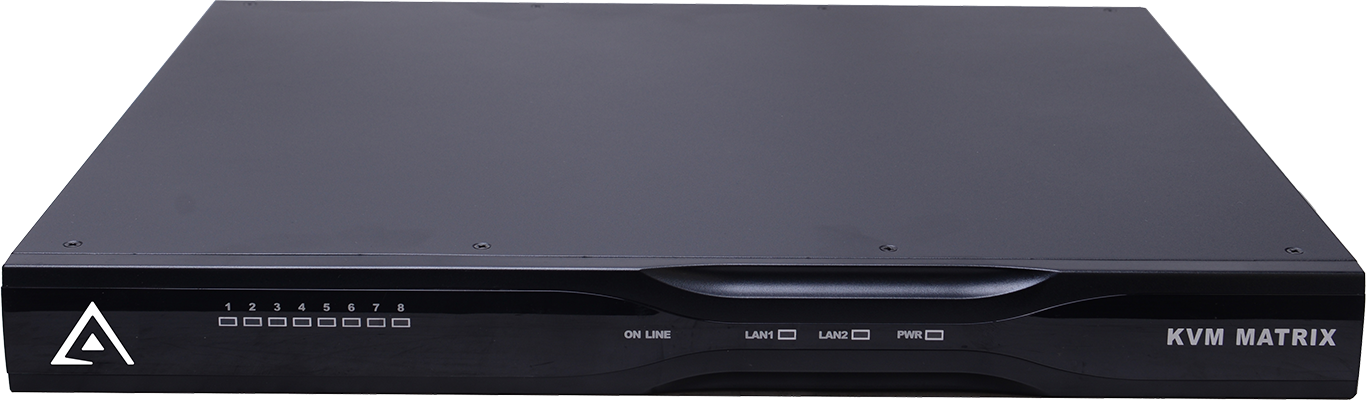

AR-UV208iL – Rackmount – 08 Port CAT5e Matrix KVM Switch over IP

Description

• Angustos AR-UV208iL KVM Switch is optimized for high density Rack in modern Data Center. A KVM Switch with 08 ports and supports computers with USB interfaces via cables. All packed in a 1U rackmountable metal housing.
• The short-depth design utilized for narrow space for short-rack mounting in condensed area. The AR-UV208iL can control up to 08 computers; with 08 additional KVM switches are cascaded, a single AR-UV208iL KVM Switch can control up to 64 computers.

FEATURES

High Density Utilization
• High density connection ports-RJ-45 connection ports
• Stand-alone channel provides 2 remote connections
for KVM over IP access
• Supports PS/2, USB, serial port (RS-232/485)
• Built-in 1000 Mbps network adapter network cards.
• Dual IP operation capabilities.
• Port sharing mode supports multiple users access
Total Control
•3000 groups of user accounts/ 3 levels permissions.
•Supports Terminating Online-Administrators can
terminate running connection
• System log generation and conditional query
• Connects equipment port information settings and
storage functions
• User rights and group management
• Supports permission setting, administrators can set
different levels of user operation permissions and ports
• Embedded WEB GUI, browser login.
• Multi-platform client systems (Windows, Mac OS X, Linux, Sun)
• Browser Support: IE, Chrome, Firefox, Safari, Opera…
• Superior video quality – up to 1920×1200 (max)
@60Hz; DDC2B; 16.7 Mil. Color.
• Auto PS/2 and USB interface sensing. Auto Scan interval
• Keyboard and mouse emulation (PS/2 and USB)
• Computer selection with hotkeys, and OSD.
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Firmware upgradable
• Supports hot-plugging
• IP filtering, blacklisting IP for securities
• FPGA Graphics and Video Processor

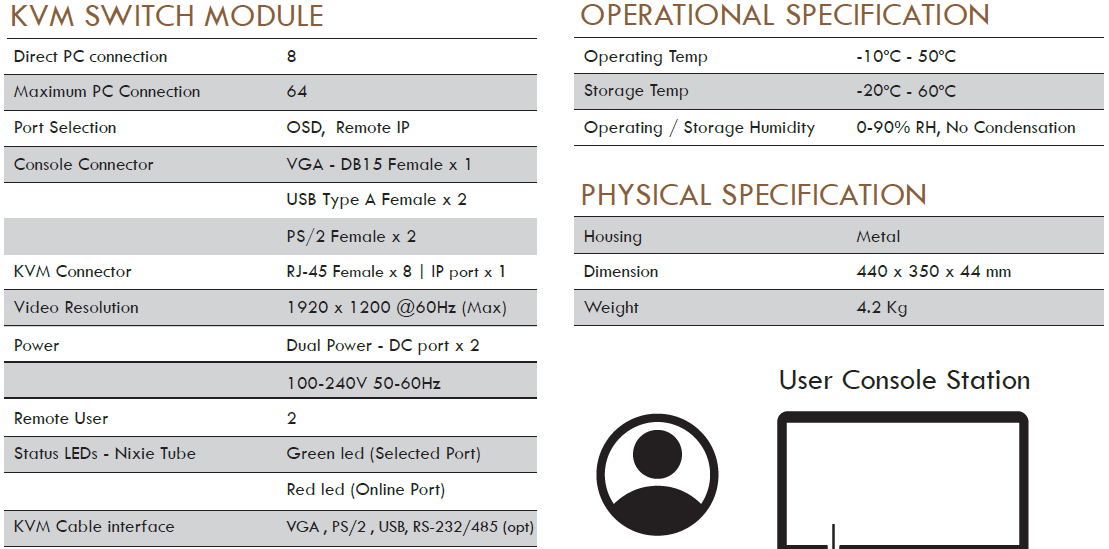

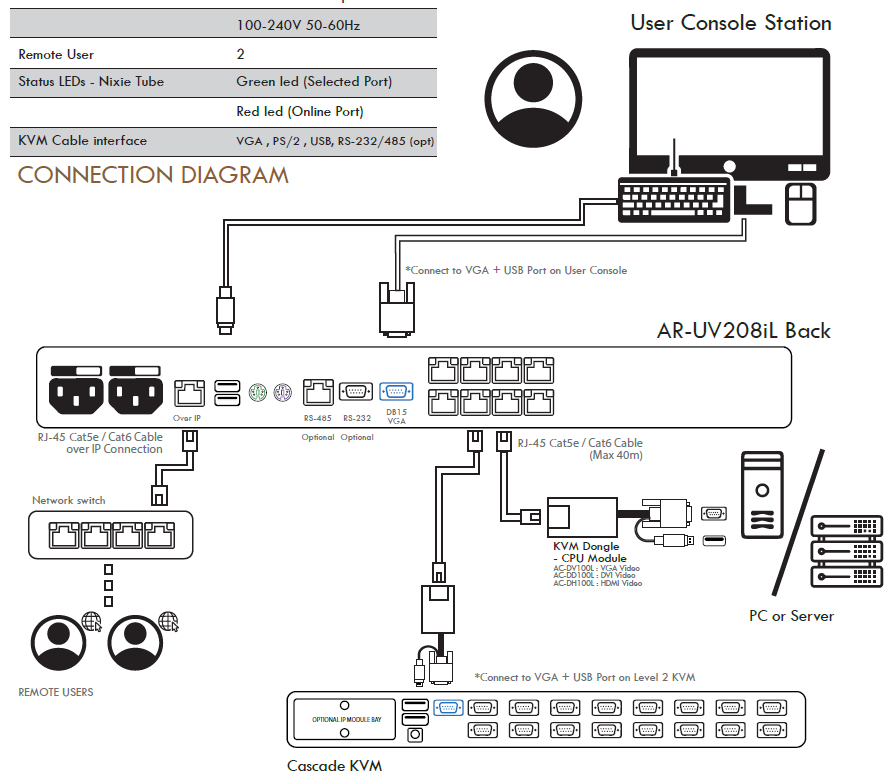

SPECIFICATION & DIAGRAM

Download
