Description

Angustos AR-M42612-LFS is a Medium Duty Rack Cabinet that is suitable for high density modern Data Center.
* Exquisite design with precise craftsmanship
* High-density ARC vented front single & rear dual doors.
* Lockable door and side panels.
* Fully adjustable vertical mounting rails.
* Castor and strong lock-stand can be installed to withstand up to 1000kg static load.
* Smart Fan controller with built-in sensor for temperature threshold auto start/stop.
* Cable access holes on top/bottom.
* Comply with:
– ANSI/EIA RS-310-D
– IEC297-2
– DIN41494:PART1
– DIN414N441494: PART7
– ETSI Standards.
– UL 60950-1
– CAN/CSA C22.2 No. 60950-1-07
* High grade cold rolled steel
* Thickness :
– Mounting Rail : 2.0mm
– Other Panel – Door: 1.2-1.5mm
* Anti-rust, semi matte static painting.
* Color : RAL 9005 – RAL 7035
* Perforated rack doors ensure ideal airflow, up to 70-85% ventilation.
* Easy to deploy and adapt to aisle containment systems for more efficient airflow management.

FEATURES

* Smart fan controller with sensor

* Swing Lock Handle

* Clear Rail marking

* Curve front door – 85% ventilation

* Ventilation fans for top cover

* Adjustable mounting rails

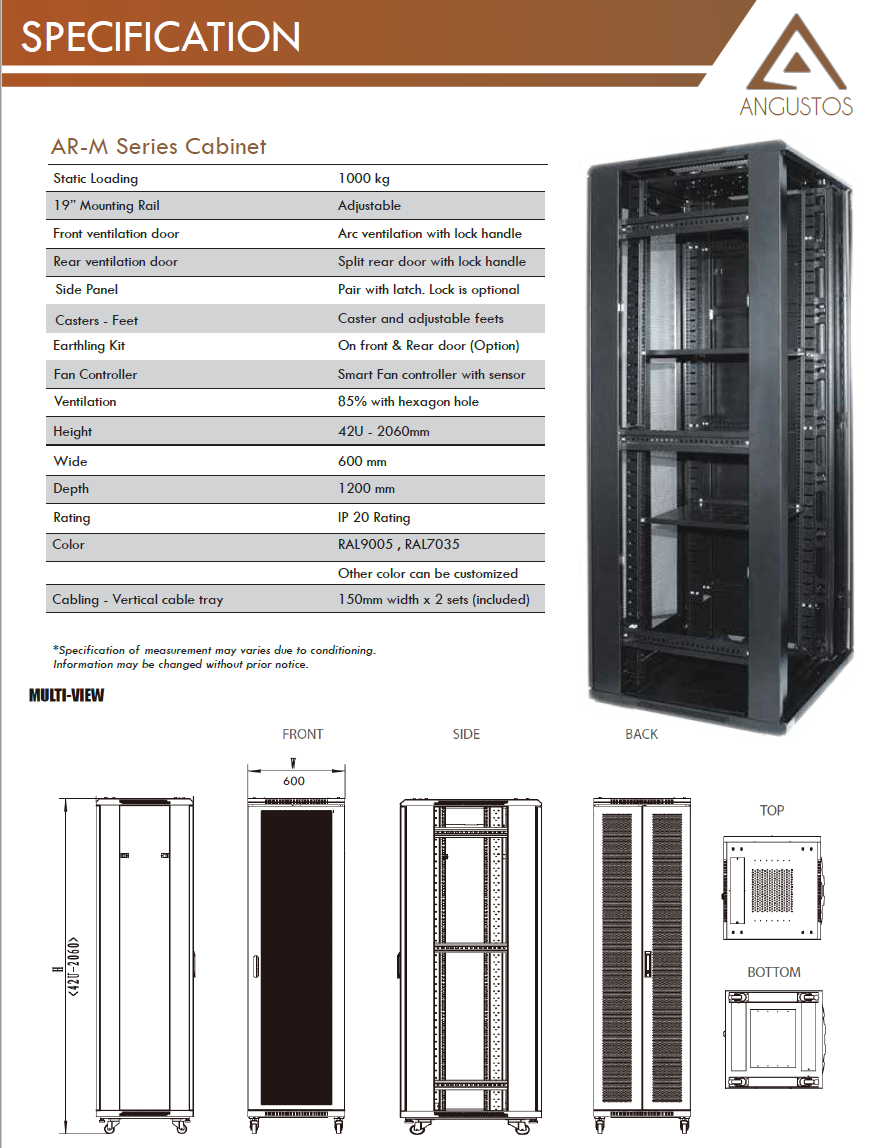

SPECIFICATION
