AL-V708P – 8 PORT – 17” PS/2-USB VGA Single Rail LCD KVM Console Drawer
Angustos AL-V708P LCD KVM Console Drawer is optimized for high density
Rack in modern Data Center.
- Store Policies
- Angustos AL-V708P LCD KVM Console Drawer is optimized for high density Rack in modern Data Center.
- Integrating a 17” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The compact design console is ultilized for extreme narrow space and super densed area. The AL-V708P can be installed and connected with Angustos KVM Switch or other brand KVM for convenience configuration. The AL-V708P can control up to 08 computers; with 8 additional KVM switches are cascaded, a single AL-V708P LCD KVM Switch can control up to 256 computers.
- In addition, the AL-V708P included an additional hot-pluggable USB port that supports other keyboard and mouse forback-up. With all of the technology involved, the AL-V708P LCD KVM Console has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility

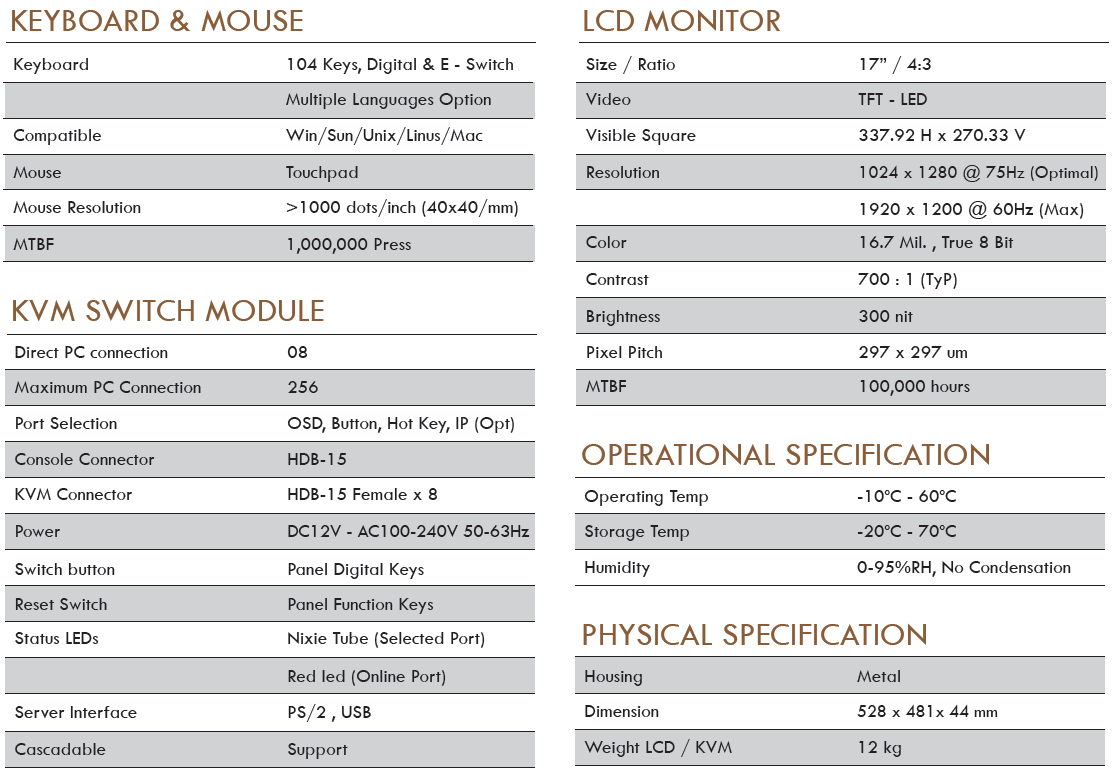

High Density Utilization
• Front USB for back up mouse-keyboard.
• LCD KVM console with an 17” LED-backlit 4:3 LCD monitor in a single rail design.
• Extreme refresh rate up to 75Hz
• Short-depth overall size allowing user to work with in condensed space of high density Rack
• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.
• Superior video quality – up to 1024 x 1280 @75Hz; DDC2B; 16.7 M Color.
• Compatible with Angustos and other brands KVM Switches.
• Cascade up to 256 computers from a single console (With compatible KVM Switches)
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.
• Digital & E-Switch key. Mechanical Mute.
• Standard rack mount kit included
• No software required – Plug and Play
• Supports hot-plugging
