Description

  • 4×2 HDMI Matrix, 4×HDMI Inputs, 2×HDMI Output
  • HDMI 2.0 version(Support [email protected] YUV4:4:4)
  • Bandwidth upto 18Gbps
  • HDCP 2.2/HDCP1.4 compliant
  • Support Panel button,IR control
  • Support Analog audio 2.0 extraction for HDMI output 2 port
  • Support Dolby Vision
  • Support OVP overvoltage protection mode (Input voltage over DC 6V)
  • With micro USB port for firmware upgrade

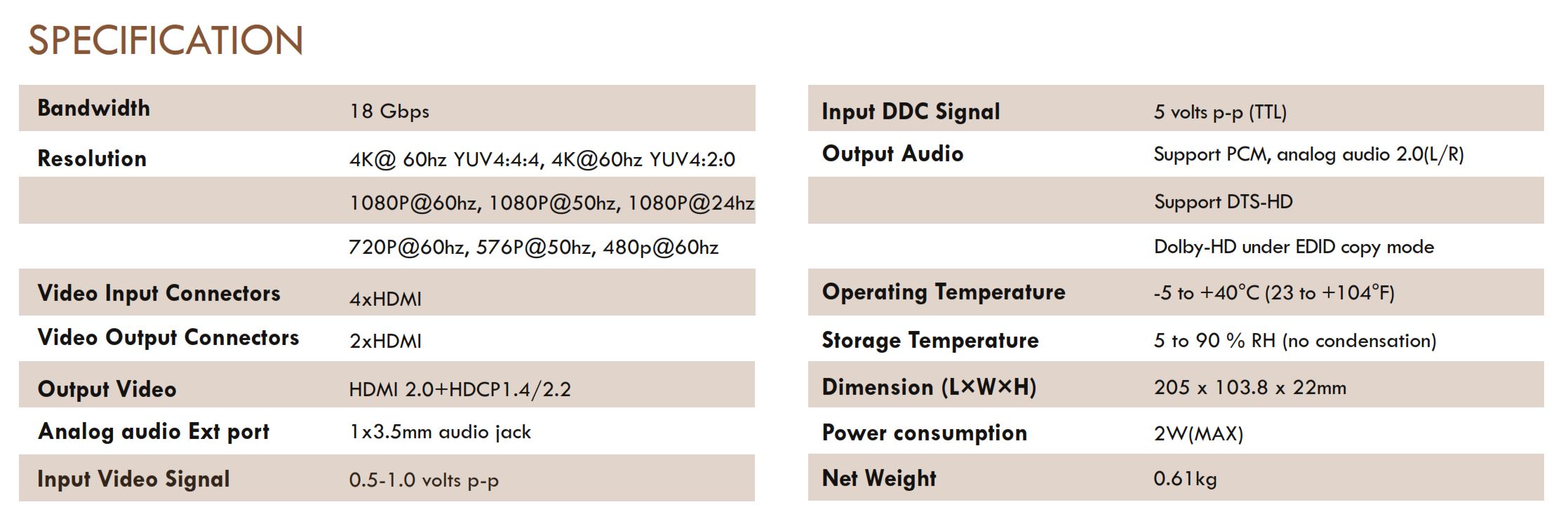

Specification

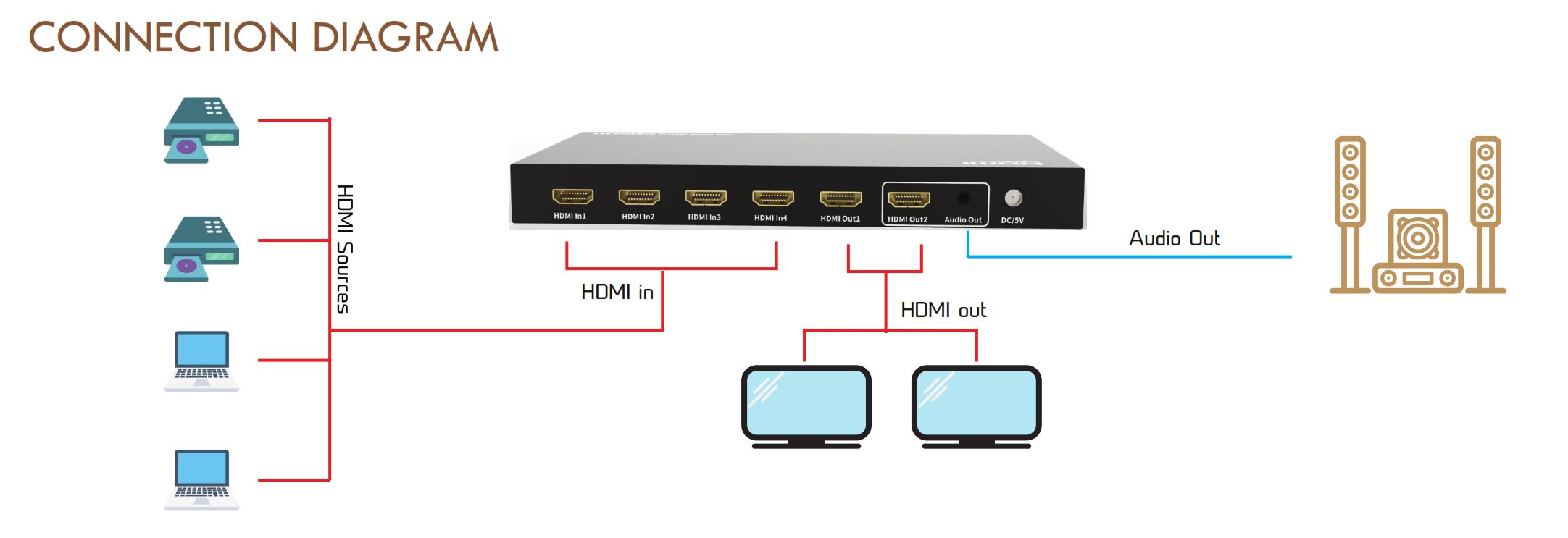

CONNECTION DIAGRAM

DOWNLOAD
