AL-V908L – 19 Inch LCD 8 port VGA KVM Single Rail

Description

High Density Utilization
• Front USB for back up mouse-keyboard.
• LCD KVM console with an 18.51” LED-backlit wide 16:9 LCD monitor in a single rail design.
• Short-depth overall size allowing user to work with in condensed space of high density Rack
• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.
Flexible compatibility
• Superior video quality – up to 1366 x 768 @60Hz; DDC2B; 16.7 M – True 8 Bit Color
• Cascade up to 128 computers from a single console (With compatible KVM Switches)
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
• Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).
• Two level password security.
• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Firmware upgradable
• Supports hot-plugging
• Supports Over IP Module for Remote Control

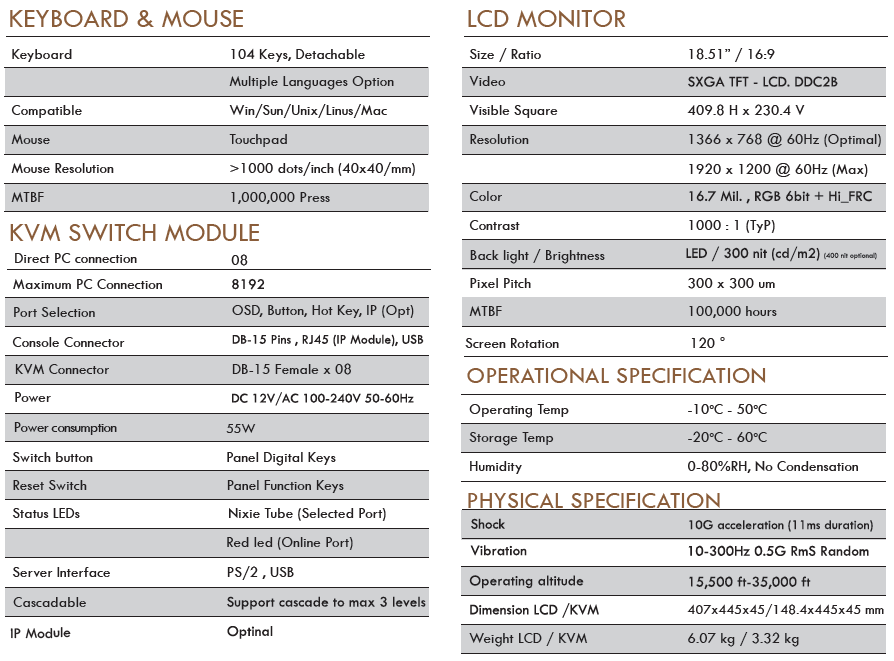

Specification

CONNECTION DIAGRAM

Datasheet
