Description
- Angustos AL-V904L LCD KVM Switch is optimized for high density Rack in modern Data Center.
- Integrating a 18.51” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The short-depth design ultilized for narrow space for short-rack mounting in condensed area. The AL-V904L can control up to 04 computers; with 4 additional KVM switches are cascaded, a single AL-V904L LCD KVM Switch can control up to 64 computers.
- In addition, the AL-V904L included an additional hot-pluggable USB port that supports other keyboard and mouse for back-up. With all of the technology involved, the AL-V904L LCD KVM Switch has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.
FEATURES
High Density Utilization
• Front USB for back up mouse-keyboard.
• LCD KVM console with an 19” LED-backlit 4:3 (or 5:4) LCD monitor in a single rail design.
• Extreme refresh rate up to 75Hz
• Short-depth overall size allowing user to work with in condensed space of high density Rack
• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.
Flexible compatibility
• Superior video quality – up to 1024 x 1280 @75Hz; DDC2B; 16.7 M Color.
• Compatible with Angustos and other brands KVM Switches.
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.
• Digital & E-Switch Key. Mechanical Mute
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Supports hot-plugging

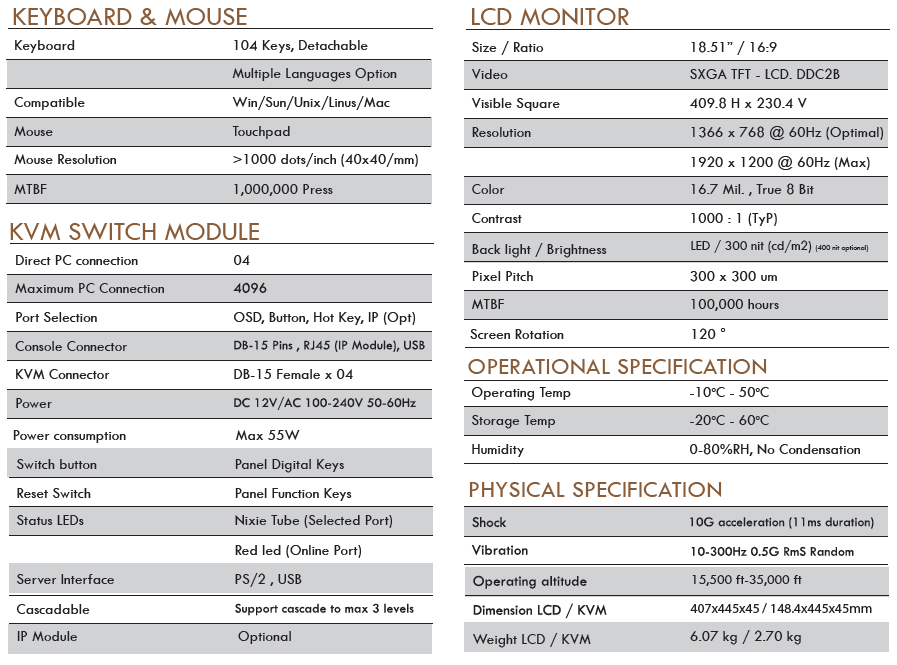

SPECIFICATION
CONNECTION DIAGRAM
Datasheet
