AL-V2116P – 1U Rack Mount 21.5″ LED KVM Switch 16 Ports

AL-V2104P – 1U Rack Mount 21.5″ LED KVM Switch 4 Ports
AL-DV916L – 19 Inch LCD 16 port VGA KVM Dual Rail
Category:
  Ask a Question
Read More
Add to wishlist
Compare

Description

  • Angustos AL-V2116P LCD KVM Console Drawer is optimized for high density Rack in modern Data Center.
  • Integrating a 21.5” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The compact design console is ultilized for extreme narrow space and super densed area. The AL-V2116P can be installed and connected with Angustos KVM Switch or other brand KVM for convenience configuration. The AL-V2116P can control up to 16 computers; with 16 additional KVM switches are cascaded, a single AL-V2116P LCD KVM Switch can control up to 512 computers.
  • In addition, the AL-V2116P included an additional hot-pluggable USB port that supports other keyboard and mouse for back-up. With all of the technology involved, the AL-V2116P LCD KVM Console has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

Features

High Density Utilization
• Front USB for back up mouse-keyboard.
• LCD KVM console with an 21.5” LED-backlit 4:3 LCD monitor in a single rail design.
• Extreme refresh rate up to 75Hz
• Short-depth overall size allowing user to work with in condensed space of high density Rack
• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.
Flexible compatibility
• Superior video quality – up to 1024 x 768 @75Hz; DDC2B; 16.7 M Color.
• Compatible with Angustos and other brands KVM Switches.
• Cascade up to 512 computers from a single console (With compatible KVM Switches)
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean,
Russian, Swedish, Chinese.
• Digital & E-Switch key. Mechanical Mute.
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Supports hot-plugging

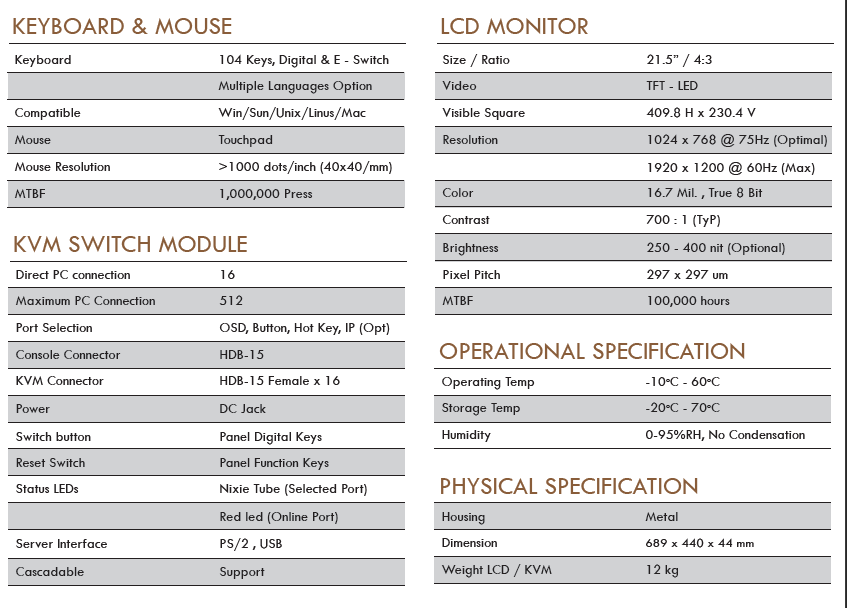

Specification

DOWNLOAD
