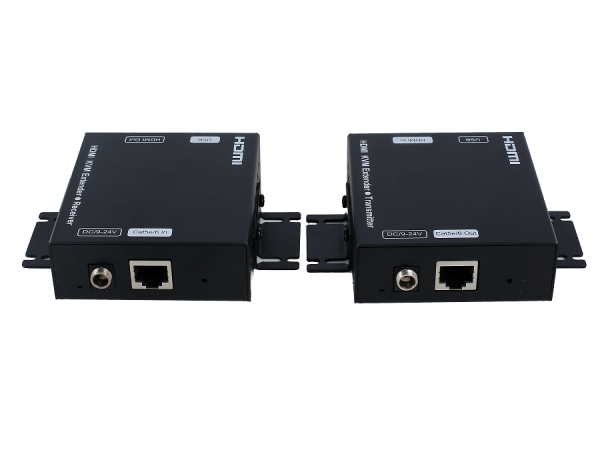

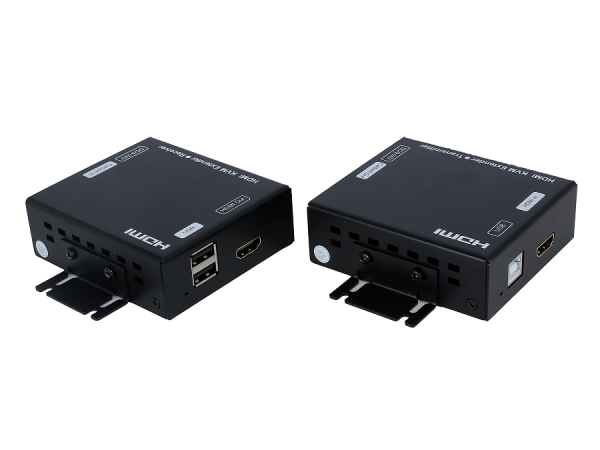

KCE600H – HDMI KVM Extender – 70 meter over CAT6

Description

• HDMI2.0b and HDCP 2.2 compliant
• Support 18Gbps video bandwidth
• Support video resolution up to 4K2K@60Hz 4:4:4
• Distance can be extended up to 70m (CAT6/6A)
• Support HDR, HDR10, HDR10+, Dolby Vision, HLG
• Audio formats: LPCM 7.1, Dolby Digital, Dolby TrueHD
• Support 3.5mm analog audio de-embedding
• EDID copy pass-through, USB1.1 with KVM function
• Support bi-directional POC (Power over Cable)

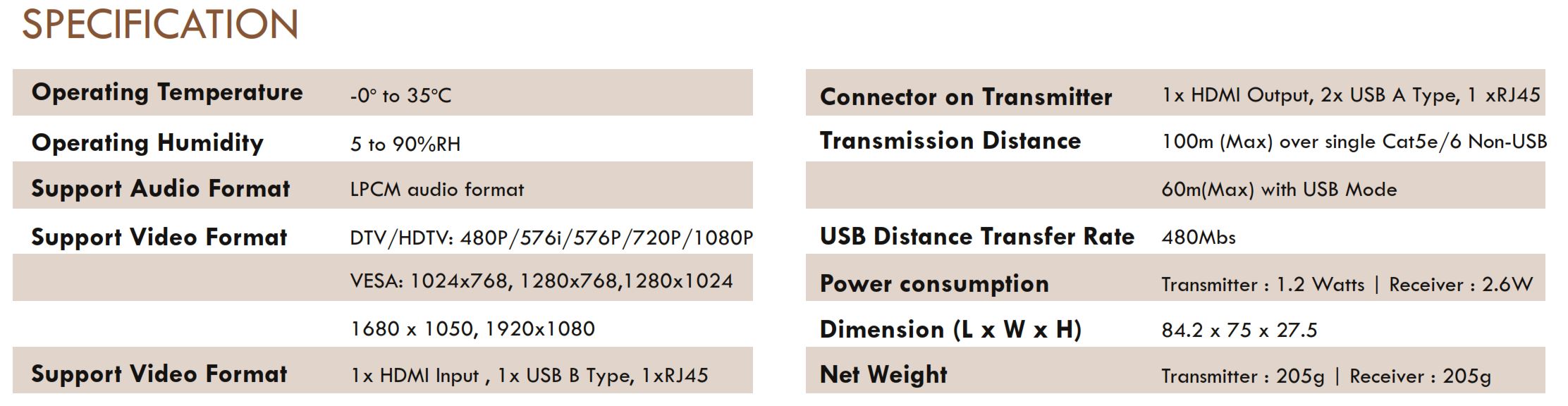

Specification

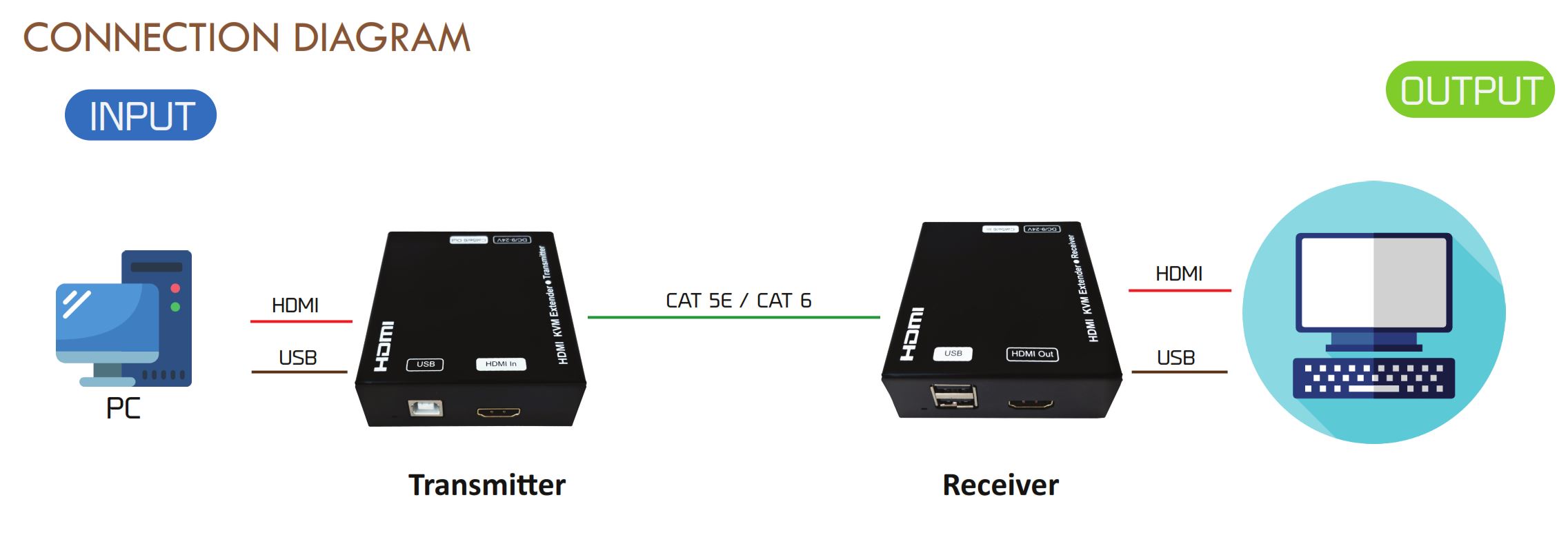

CONNECTION DIAGRAM

DOWNLOAD
