AMC4 Series CARDS-4K UHD MATRIX – VIDEO WALL CONTROLLER WITH MULTIVIEWER

Description

FPGA Dedicated Chipset

• Dedicated Field Programmable Gate Array (FPGA) chipset is a combination of processing unit that dedicated in video processing. This eliminated the limitation of a CPU or a GPU from conventional Software or PC controller.
• Without the use of PCI – Express card, the unit can work flawlessly when adding or editing the total layout of the videowall set up. As each of the FPGA chip is working independently, user can replace or add new input/output card to customize their system

Module design with Hot Swap

• Multiple form of connections for client to custom fit their system. Client can now combine HDMI – DVI – VGA – HDBaseT & IP Streaming in one total solution, maximizing system integration.
• Reduce total cost of investment in both pre/post phase of expansion. Chassis also support control over Remote control, TCP/IP, RS-232 & button, further simplify the complexity of connections and management

FEATURES

• Compatible with the AMC4 Modular Matrix Switches
• 4K Resolutions support – up to 4096 x 2160 @ 60Hz
• Scaler – features a video scaling function
• Seamless – continuous video streams, real-time
• Video Wall – custom video wall layouts
• EDID Manager across different screens
• Audio-embeded, HDMI audio can be extracted
• HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible
• Consumer Electronics Control (CEC) support
• Resolution Backward compatible

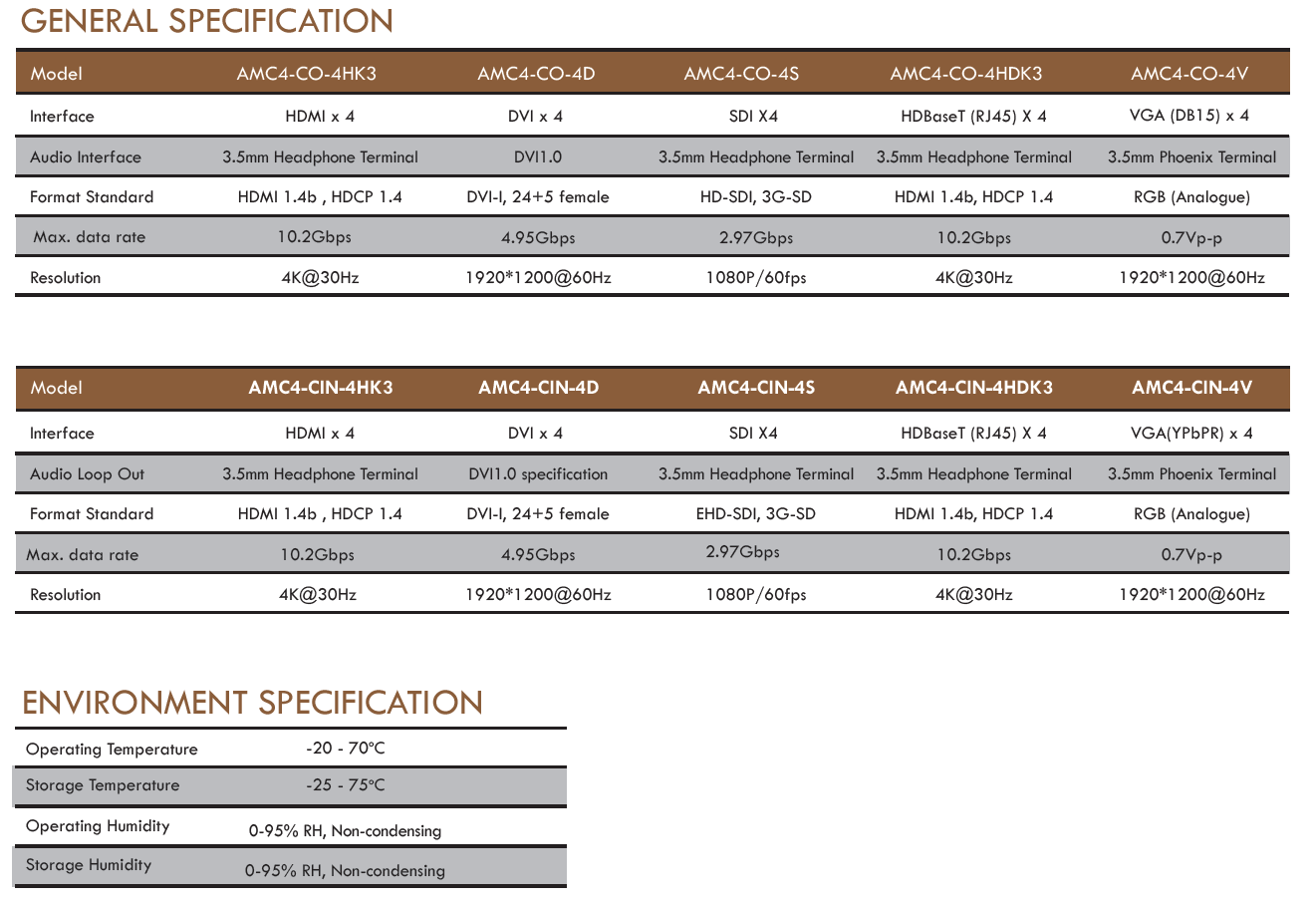

Specification
