Description
- Angustos AL-UV18508D LCD KVM Console Drawer is optimized for high density Rack in modern Data Center.
- Integrating a 18.5” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The compact design console is ultilized for extreme narrow space and super densed area. The AL-UV18508D can be installed and connected with Angustos KVM Switch or other brand KVM for convenience configuration. The AL-UV18508D can control up to 08 computers; with 8 additional KVM switches are cascaded, a single AL-UV18508D LCD KVM Switch can control up to 248 computers.
- With all of the technology involved, the AL-UV18508D LCD KVM Console has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.
FEATURES
High Density Utilization
• Connect to servers with distance up to 40m with single Cat5e / 6 UTP cable
• LCD KVM console with an 18.5” LED-backlit 16:9 LCD monitor in a single rail design.
• Short-depth overall size allowing user to work with in condensed space of high density Rack
• Cross-based keyboard with integrated Digital & E-switch keys.
• Aluminum-magnesium upper shelf.
• OSD button : One touch access.
• Certificate : CE , FCC , RoHS
Flexible compatibility
• Superior video quality – up to 1366 x 768 ; DDC2B. Back up 2nd Console ports.
• Compatible with Angustos and other brands KVM Switches. Support Auto Scan.
• Cascade up to 248 computers from a single console (With compatible KVM Switches).
• Auto PS/2 and USB interface sensing.
• Operates with all software and operating systems including all Windows versions, DOS, Linux. (Unix, Sun OS, Mac OS optional).
• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.
• Two level password security (Optional)
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Supports hot-plugging

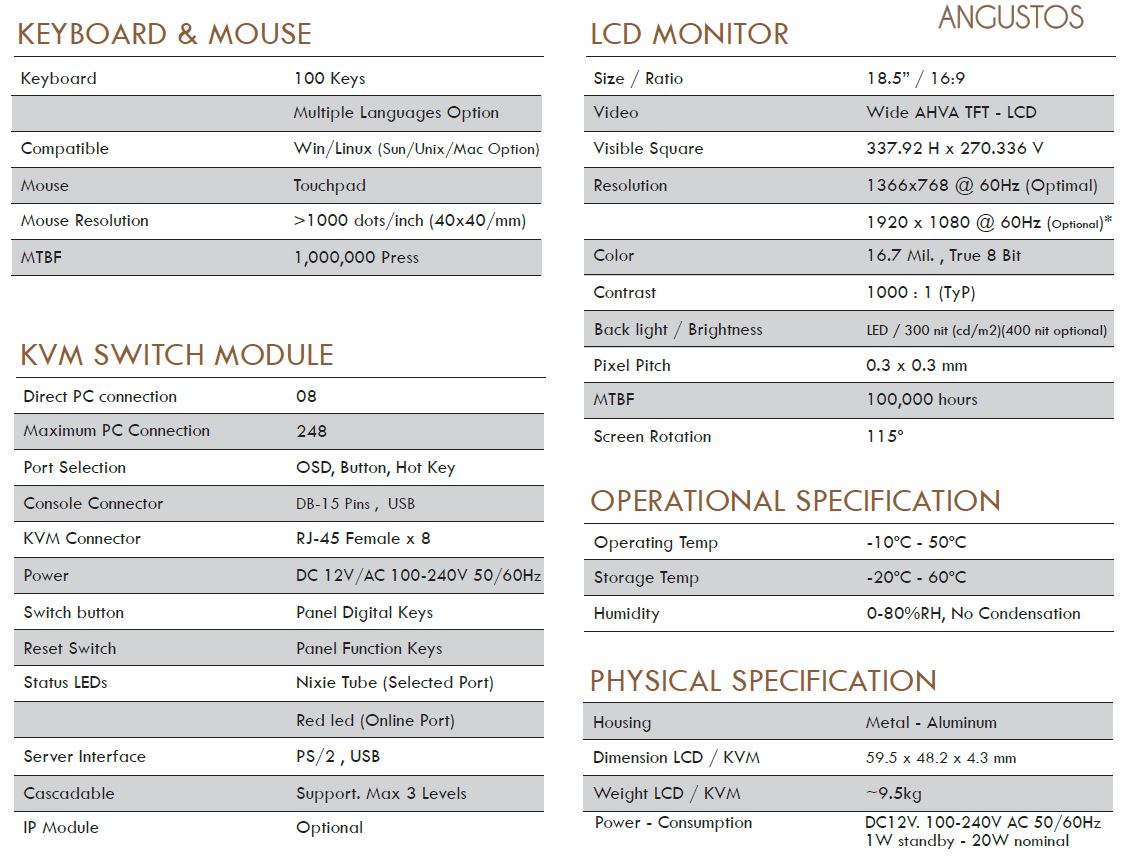

SPECIFICATION

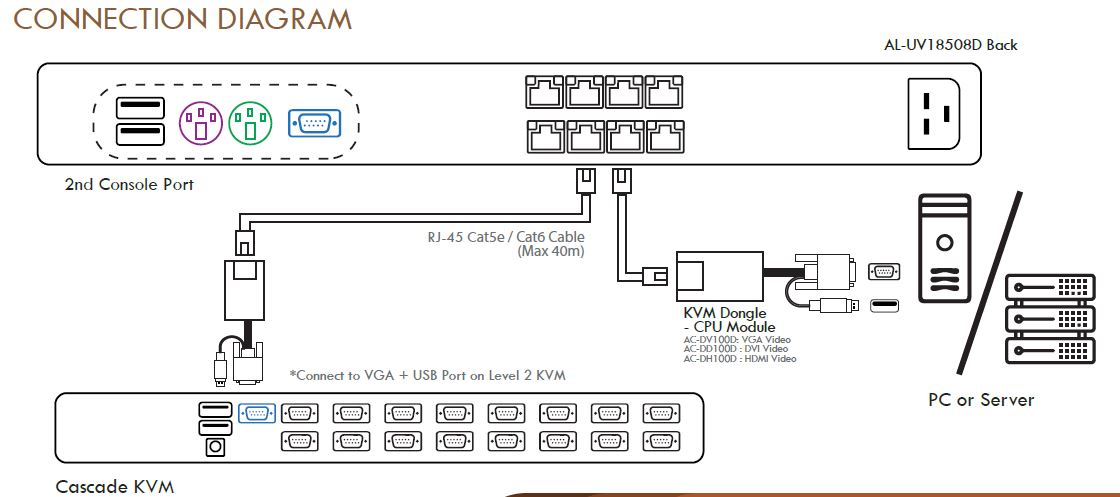

CONNECTION DIAGRAM
DOWNLOAD
General Inquiries
There are no inquiries yet.
