AHVE-HU10Wi-T-HDMI KVM Extender Over IP – 100 meter with Video Wall

Description

FEATURES

• HDMI 1.3 and HDCP 1.4 compliant
• 4.95 Gbps video bandwidth
• Input video resolution: 1920×1200@60Hz
• Support point-to-point signal extension up to 100m
• Support signal distribution, multicast mode
• Videowall (up to 9×9) with Gigabit Network Switch
• Support LPCM 2.0CH (32/44.1/48KHz) audio format
• Support RS-232 control (pass-through & Guest mode)
• Support POE function (802.3af Class 3, PD mode)

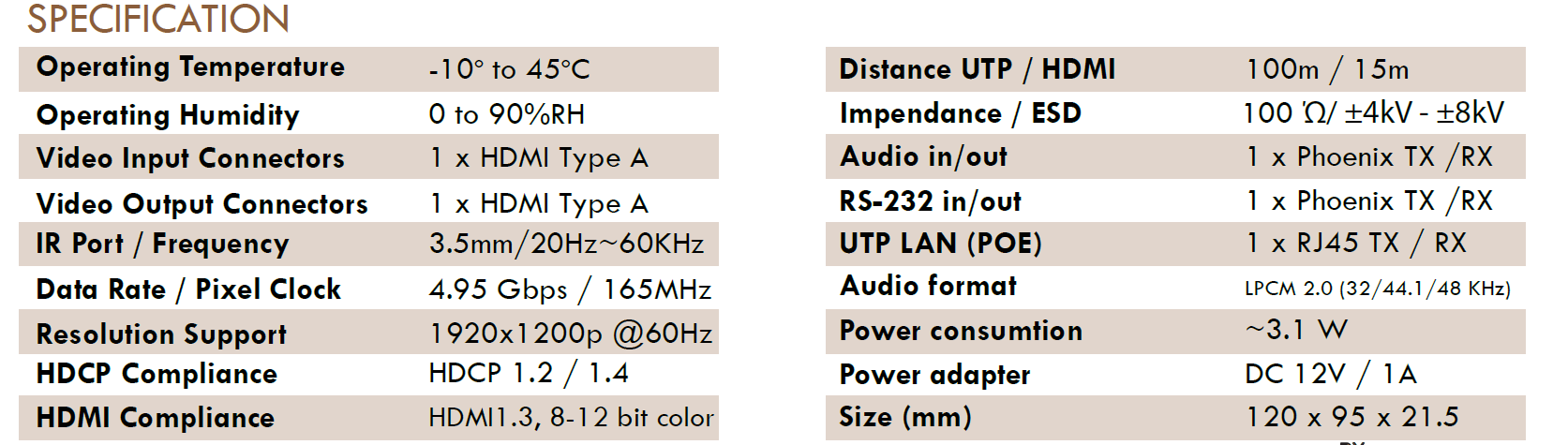

Specification

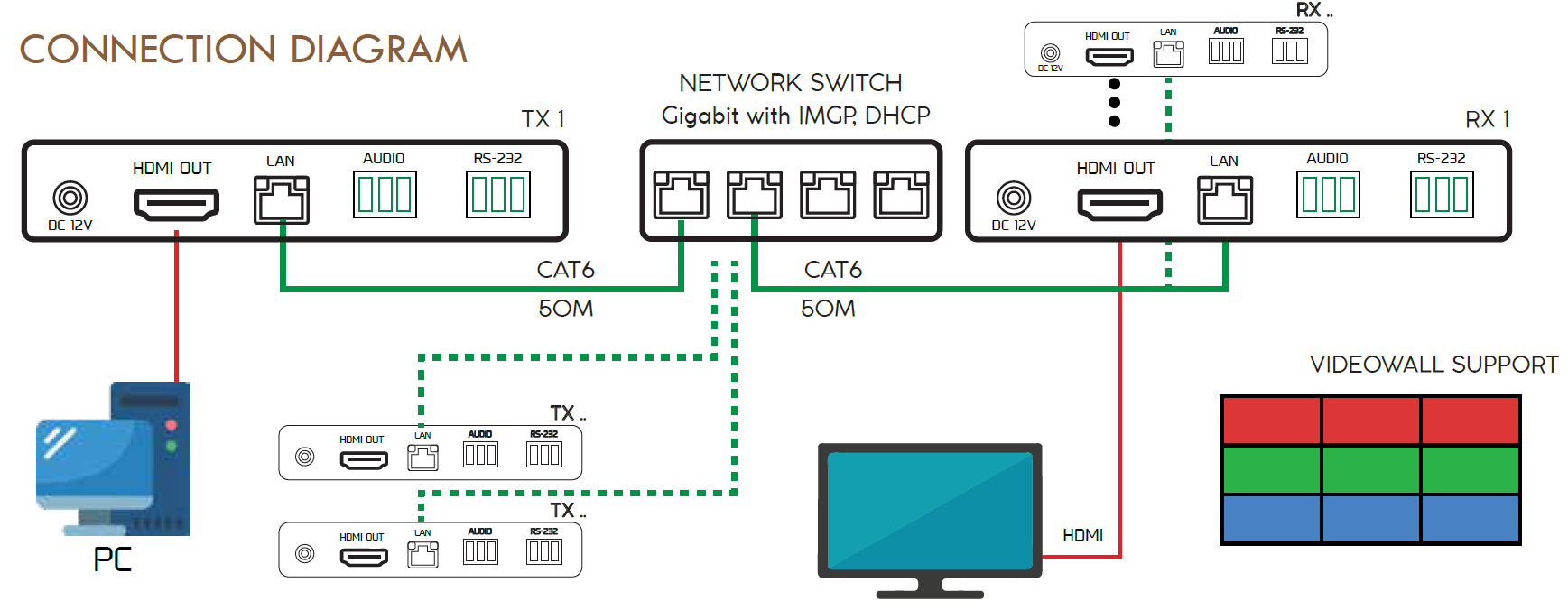

CONNECTION DIAGRAM

DOWNLOAD
