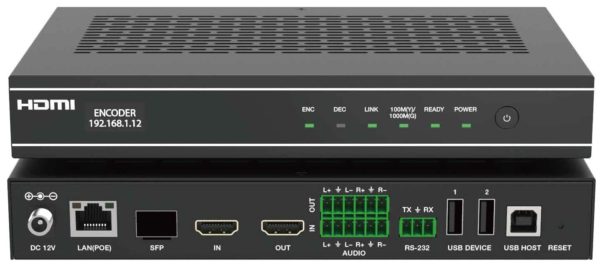

AHCE-KU10Wi – 4K HDMI KVM Extender Over IP – 100 meter with Video Wall

Description

FEATURES

• HDMI 2.0b and HDCP 2.2 compliant
• 18 Gbps video bandwidth. Resolution 4K60Hz (4:4:4)
• Audio formats support LPCM 2.0CH 48kHz
• Supporting point to point, fiber and copper connection.
• PIP, Drag&Drop, roaming, overlaying, and splicing
• KVM seat management (one-to-one & one-to-many)
• Signal multicast, matrix and video wall. Support Preview
• Support RS-232 control (pass-through & Guest mode). IP Camera.
• Support POE function (802.3af Class 3). Audio embedding /de-embedding.

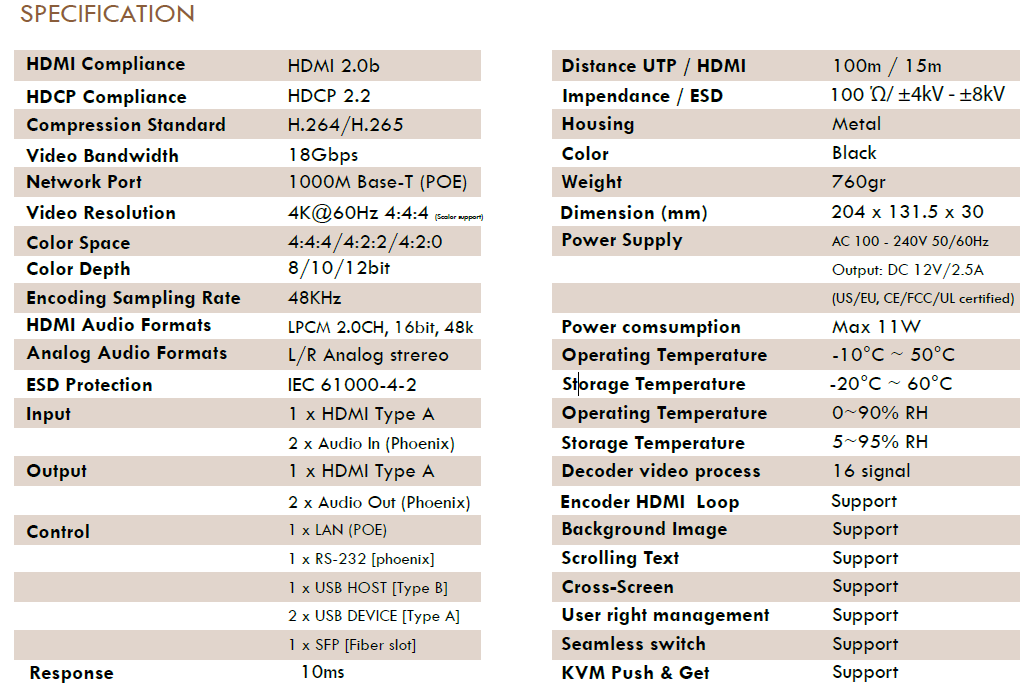

Specification

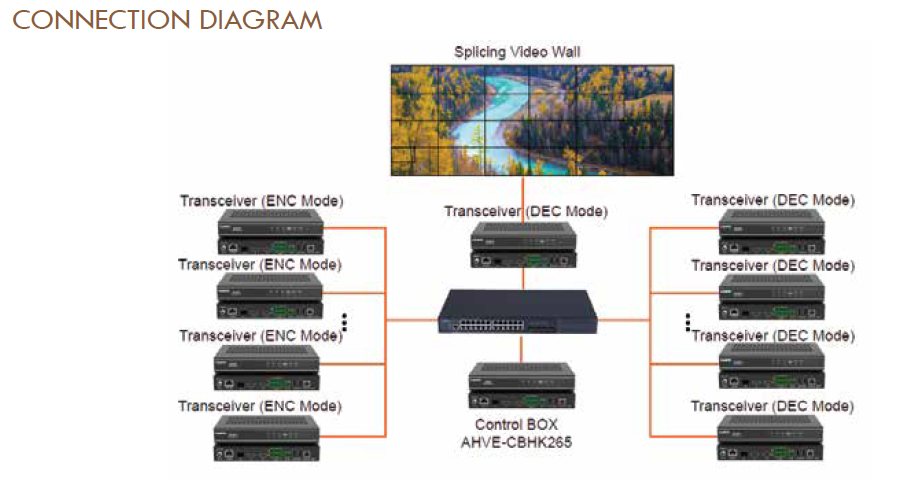

CONNECTION DIAGRAM

DOWNLOAD
