Description

  • Angustos AL-V716LS LCD KVM Switch is optimized for high density Rack in modern Data Center.
  • Integrating a 17” LED screen, keyboard and mouse pad in a 1U rack mountable sliding housing. The short-depth design utilized for narrow space for short-rack mounting in condensed area. The AL-V716LS can control up to 16 computers; with 512 additional KVM switches are cascaded on two more level , a single AL-V716LS LCD KVM Switch can control up to 16384 computers.
  • In addition, the AL-V716LS included an additional hot-pluggable USB port that supports other keyboard and mouse for backup. With all of the technology involved, the AL-V716LS LCD KVM Switch has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

FEATURES

High Density Utilization
• Front USB for back up mouse-keyboard.
• LCD KVM console with an 17” LED-backlit 4:3 LCD monitor in a single rail design.
• Short-depth overall size allowing user to work with in condensed space of high density Rack
• Slide Lock – secure the console drawer to remain firmly in slide position when not in use.
Flexible compatibility
• Superior video quality – up to 1280 x 1024 @60Hz; DDC2B; 16.7 Mil. Color.
• Cascade up to 16384 computers from a single console (With compatible KVM Switches)
• Auto PS/2 and USB interface sensing.
• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
• Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).
• Two level password security.
• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.
Installation Flexibility
• Standard rack mount kit included
• No software required – Plug and Play
• Firmware upgradable
• Supports hot-plugging
• Supports Over IP Module for Remote Control

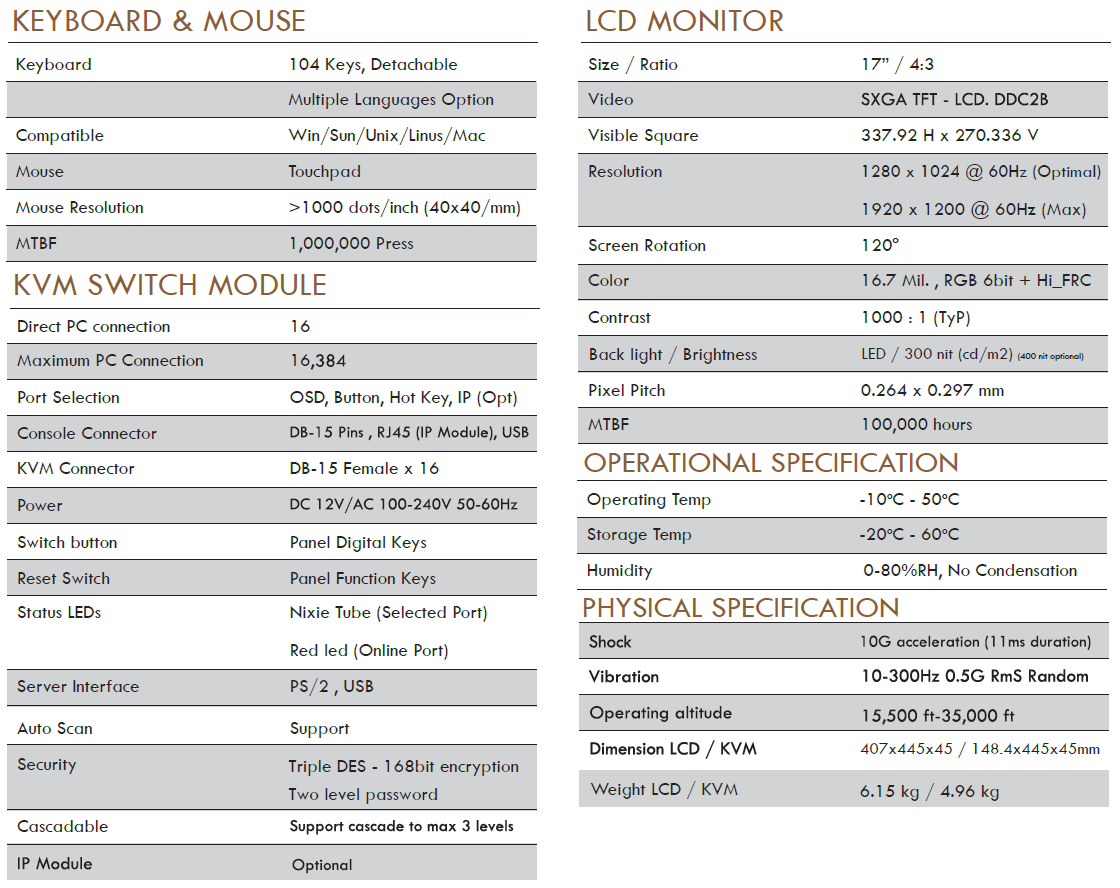

SPECIFICATION

CONNECTION DIAGRAM

DOWNLOAD
