AHVW-0404K6-HDMI MATRIX SWITCH Seamless 4 x 4 – Video Wall Controller

Description

FEATURES

• Compliant HDMI 2.0b
• Compliant HDCP 2.2 and HDCP 1.4
• Features 2 operational modes:
  – 4×4 Matrix (seamless switch)
  – Video wall (2×2, 4×1 or 1×4 etc configuration)
• Seamless video switching
• Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840 x 2160 @60Hz 4:4:4, 4096 x 2160 @60Hz 4:4:4)
• HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4:4
• Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
• Advanced EDID management
• Web interface module for control and configuration of Matrix
• Control via front panel, IR, RS-232 and TCP/IP
• 3rd Party drivers available for all major home control brands

PACKAGE CONTENTS

• 1 x 18Gbps 4×4 Seamless Matrix
• 1 x Matrix IR Remote
• 1 x 3pin-3.81mm Phoenix Connector (male)
• 1 x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
• 2 x Mounting Ears
• 4 x Machine Screws (KM3*4)
• 1 x 12V/2.5A Locking Power Adapter
• 1 x User Manual

SPECIFICATION

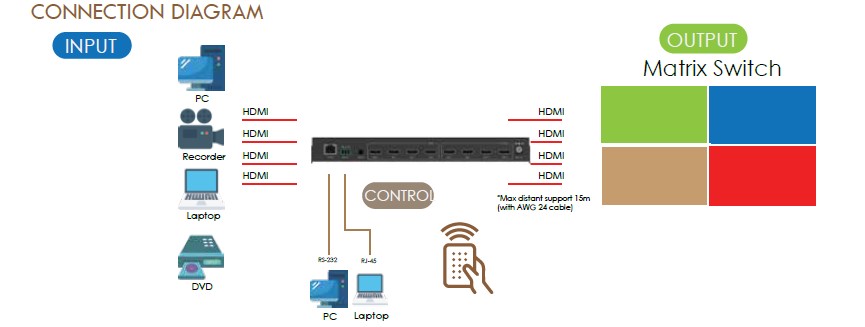

CONNECTION DIAGRAM

DOWNLOAD
