AHVS-EH12U6K6-1×2 HDMI over CAT Extender 60 meters – 18Gbps

Description

FEATURES

• HDMI 2.0b, HDCP 2.2 / 1.4 compliant
• 18Gbps video bandwidth with 7.1CH HD audio
• Video resolution up to 4K2K@50/60Hz 4:4:4
• Support HDR, HDR10+, HLG, Dolby Vision
• IR support (RX), one-way POC feature
• Digital and analog audio de-embedded output
• Distance up to 35m- 4K@60Hz, 50m-4K@30Hz
  , 60m-1080P@60Hz with single CAT6/6A
• HDMI loop output / Advanced EDID management

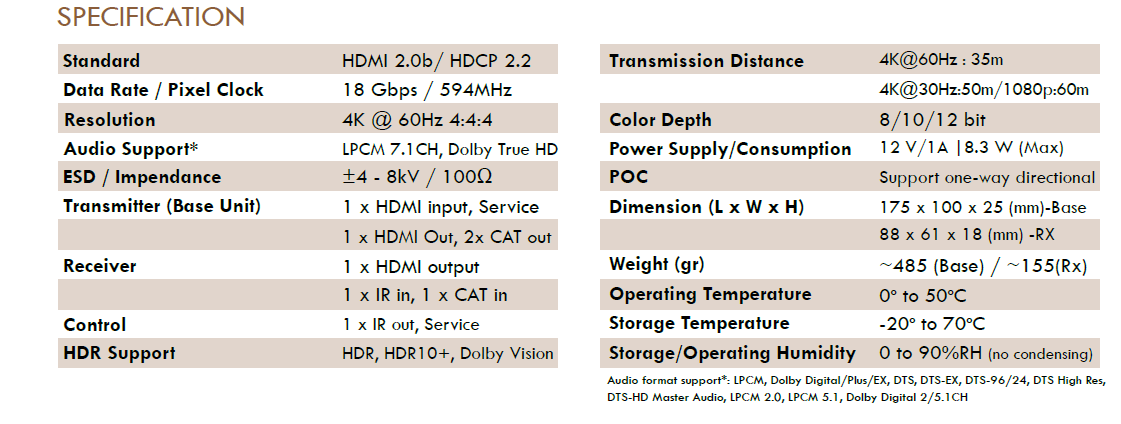

Specification

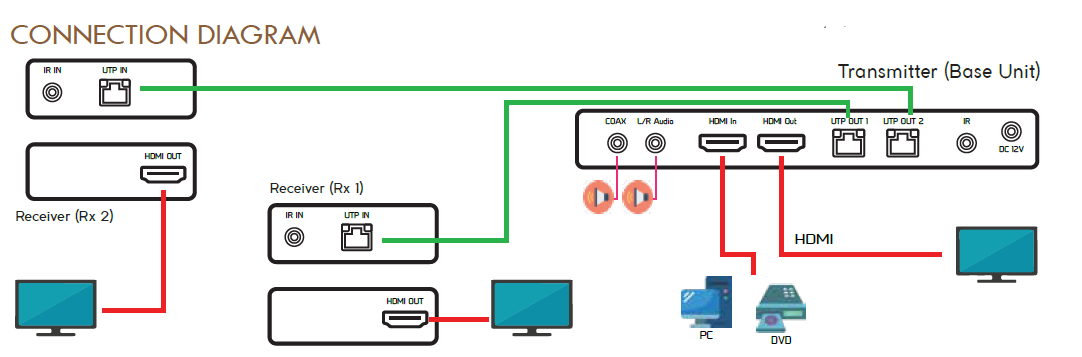

CONNECTION DIAGRAM

DOWNLOAD
