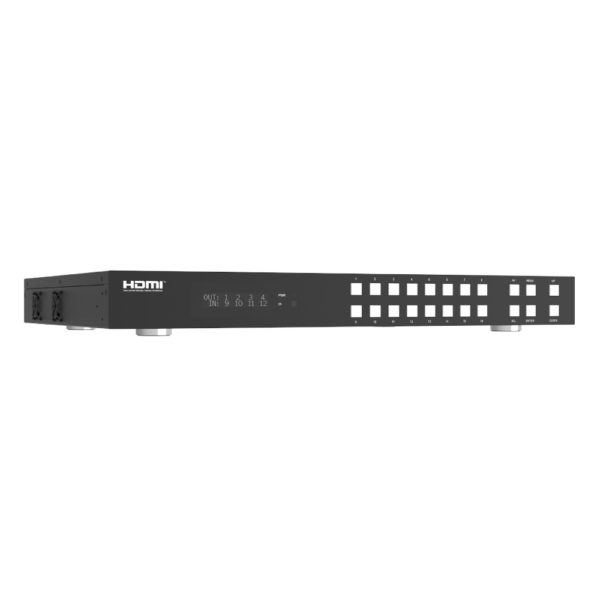

AHVM-H1616P – HDMI Matrix Switch 16×16, 4K@60HZ 4:4:4

Description

• HDMI 2.0b, HDCP 2.2 / DVI 1.0 compliant
• Resolution up to 4K@60Hz (YUV 4:4:4)
• Support 18Gbps video bandwidth
• HDR, HDR10, HDR10+, Dolby Vision
• 4K->1080P Down Scaler for each output port
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Audio de-embedded via coax ports
• ARC, CEC and smart EDID management

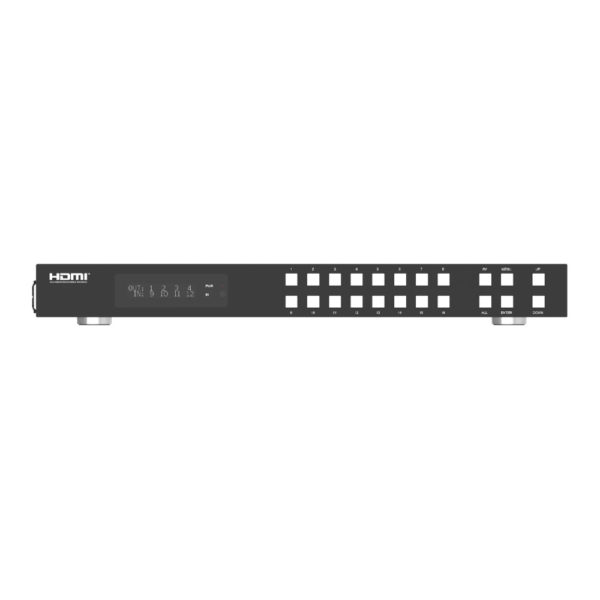

• Front panel OLED display
• Buttons, IR remote, RS-232, LAN and Web GUI

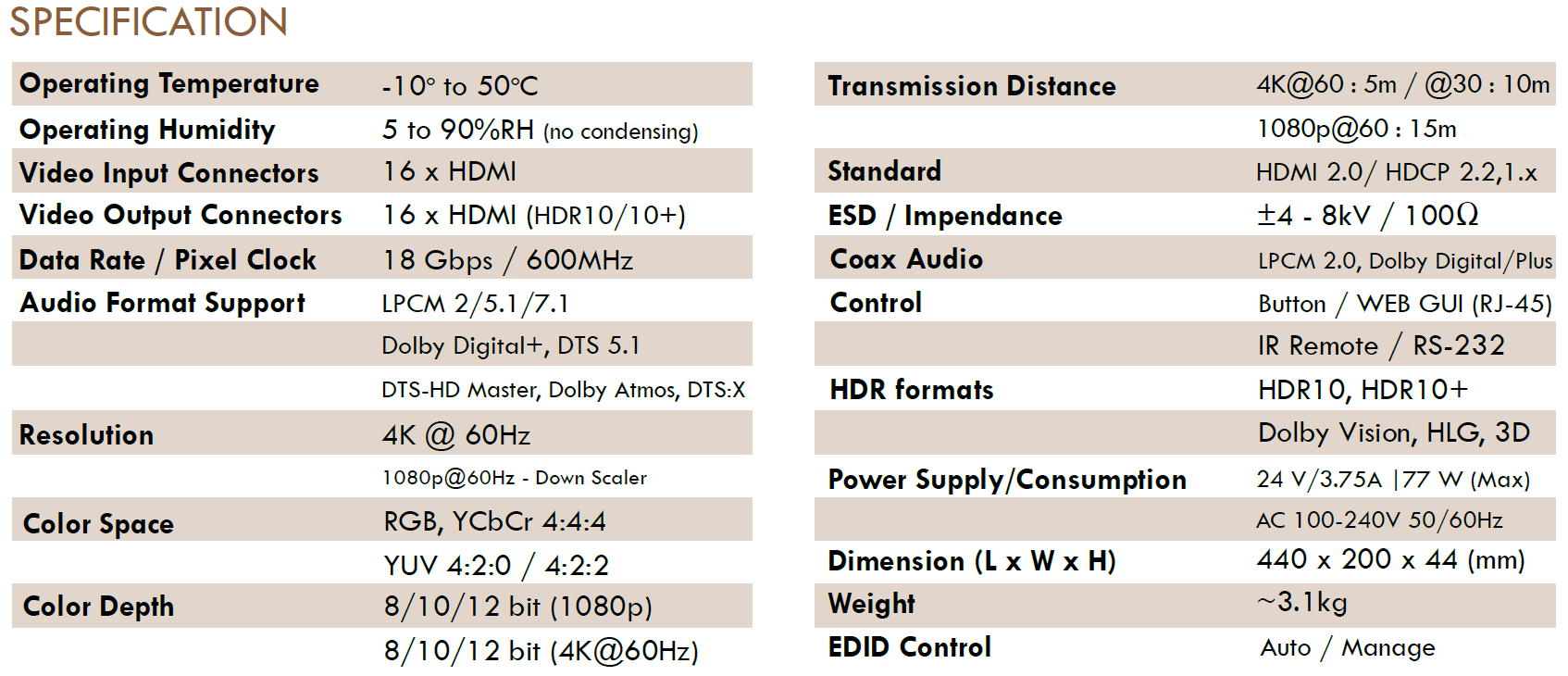

Specification

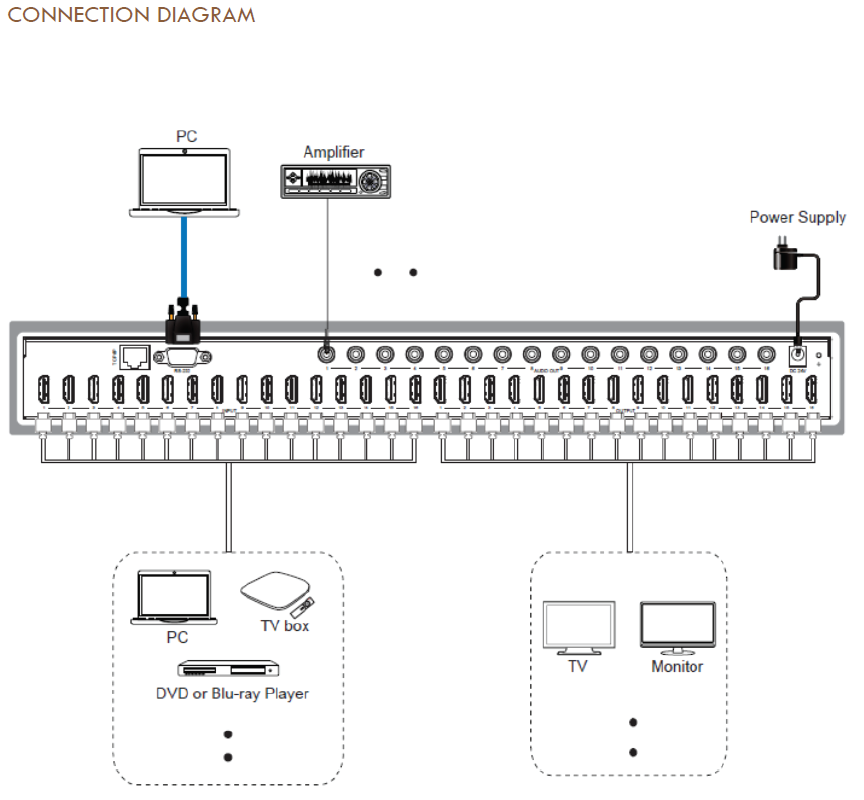

CONNECTION DIAGRAM

DOWNLOAD
