AHVE-WHA100- 18Gbps HDBase-T HDMI Extender Wallplate

Description

FEATURES

• HDMI 2.0b and HDCP 2.2 compliant
• 18Gbps video bandwidth
• HDMI video resolution up to 4K@60Hz (4:4:4)
• VGA video resolution up to 1920×1200@60Hz
• 7.1 channels HD audio
• 328ft/100m for 4K2K@60Hz (4:4:4) with single CAT6
• Automatic and manual switching modes
• Two-way IR, RS-232 and USB supported
• 2-Gang US Decora Wall-plate
• 24V POC is supported

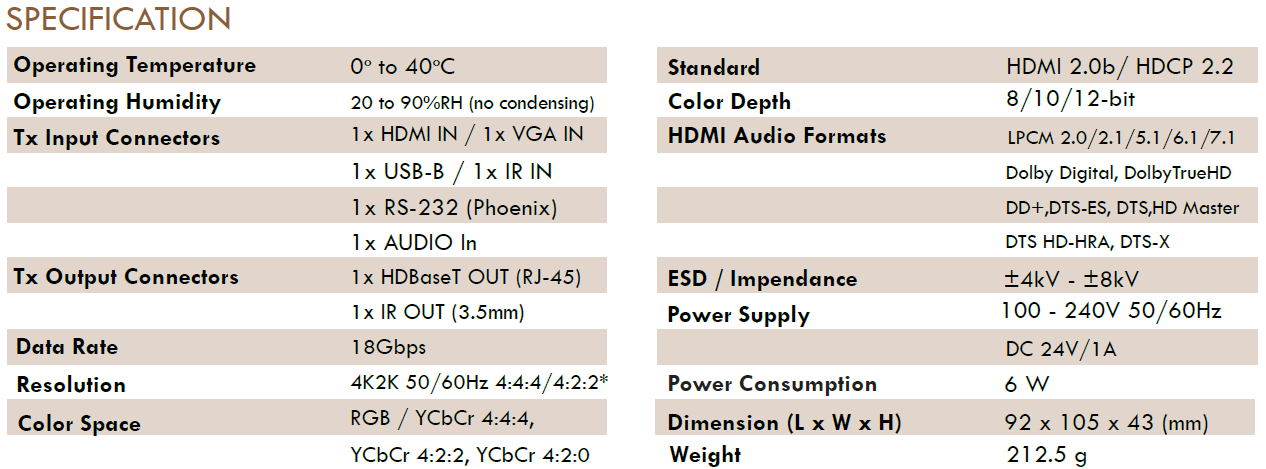

Specification

CONNECTION DIAGRAM

DOWNLOAD
