AHAC-ADK6-HDMI Audio Extractor

Description

Why choose ANGUSTOS Pro-AV ?
We can provide you the best solution that suits your TVs, interactive screens, meeting room high-end projector, digital signage and videowall system. We
do not just simply sell the equipments but also a smart solution that is just as well designed as it is functional. Solutions that guarantee and define our
brand:
•Ease-of-use
•Design
•Innovation
•Reliability
•Ease-of-installation.
To help you find the exact solution you need, Angustos has an extensive product range that is possible to compose a solution for nearly every Pro
AV application. Our highly skill solution teams are happy to help you to quickly find the best solution for your installation, saving you the time and
effort and hassle for complex system.

FEATURES

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
• Supports HDMI High Bit Rats(HBR) audio pass through
• Audio sample rates up to 192kHz
• 10bits HDR (High Dynamic Range) pass through
• Supports CEC bypass

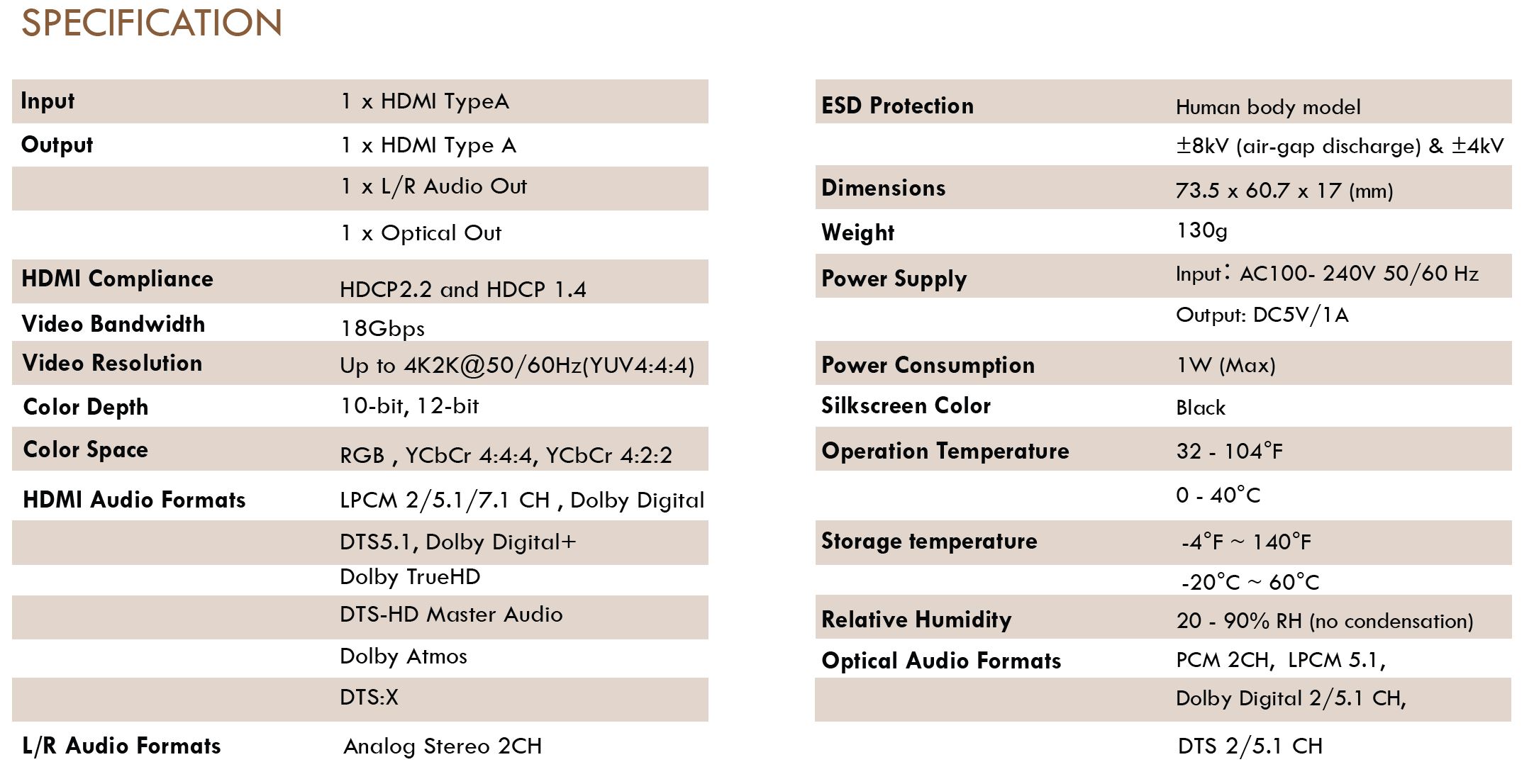

Specification

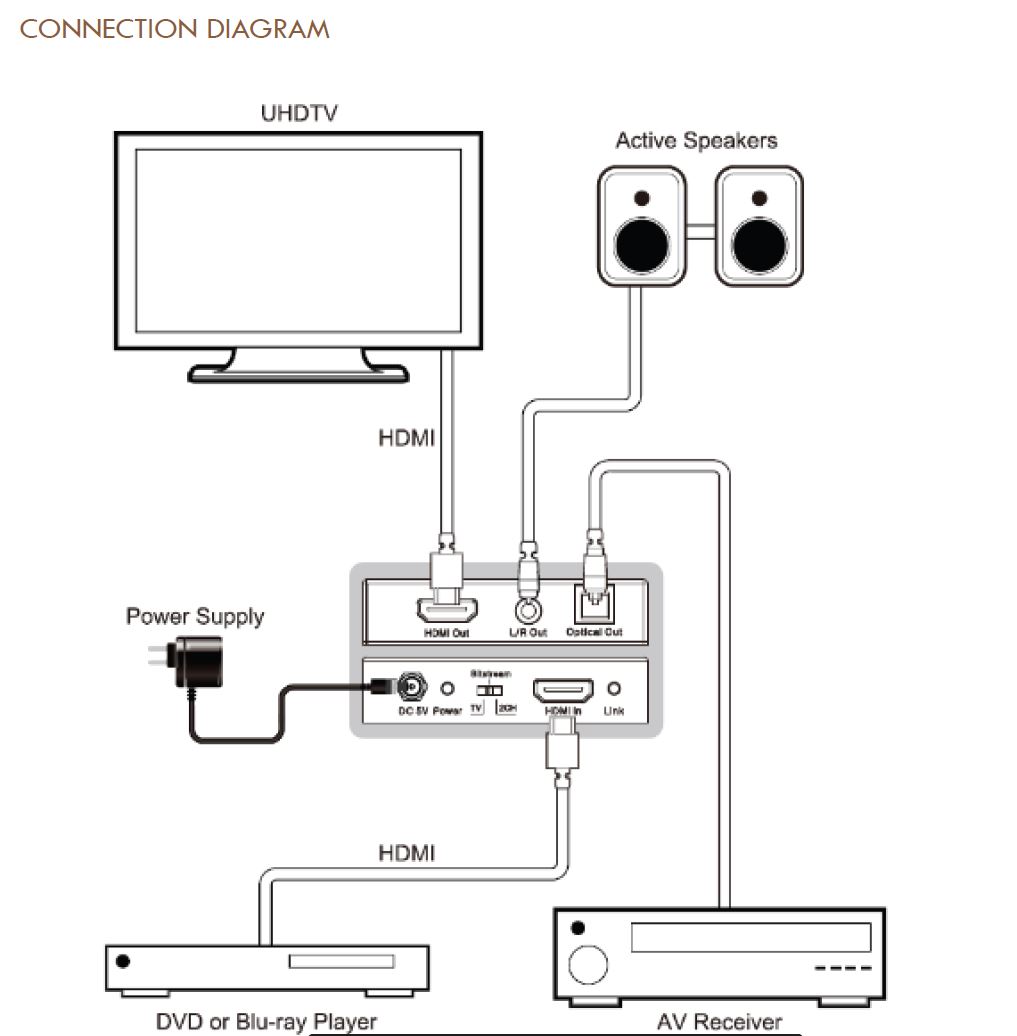

CONNECTION DIAGRAM

DOWNLOAD
