AID-86K2- 86 Inch DLED Interactive Display

Description

ANGUSTOS Interactive Display

Angustos Interactive displays are designed to work into the growing dynamic possibilities of the modern meeting room and classroom. We seek to help businesses develop and maintain an environment where ideas flow freely.
It allows for extended, seamless teamwork collaboration, stimulating more innovative ideas from students. Pushing up collaboration between people, turning their creativities from abstract to real.

Crystal Gaze™: 4K UHD Interactive display and wide viewing angle, you can comfortably see details displayed at every angle. Eye protection screen design will reduce visual fatigue from pro-longed watch time.

Powerful but easy to use: Built-in speaker, microphone(optional), HD camera (optional), shorten the distance with your audiences in your online classroom and meeting room with impressive Interactive IR-touch technology, smooth
touch writing experience, complex object recognition.

ANGUSTOS Interactive Display

• Media – Telecom – Broadcast
• Education – Training
• Manufacturing – Quality Control
• Retail – Advertising
• Meeting Room – Conference
• Healthcare visual system
• Entertainment
• Government – Control Room

FEATURES

     FEATURES

• Android 11.0 smart operating system and unique 4K UI interface.
• 4-core 64-bit high-performance CPU, 4×A53 architecture, max. clock 2.2GHz
• Ultra-narrow frame design, frosted frame material.
• Touch accuracy reaches ±1mm (90% middle area).
• Touch height 1.0mm, max 40 touch points, high sensitivity.
• Support OPS interface, expandable dual systems.
• USB 3.0 windows interface, USB 2.0 supports dual sharing.
• RoHS + REACH standard
• 4K UHD writing whiteboard, handwriting with delicated strokes.
• Support apps with high-performance writing single-point & multi-point writing,
• double-pen writing, unlimited color palettes, inserting pictures, adding pages. S-Write APK with Pen Protocol 2.0.
• Zoom in, zoom out, roaming, scanning code to share in LAN. Annotation function is available in all channels.
• Anti-glare and explosion-proof tempered glass, MoHS hardness level 7.
• Built-in WPS, 2.4G/5G dual-band wireless, dual network card with Hot Spot (Optional).
• Support multi-channel wireless share presentation with mirroring anti-control, video & music & document sharing.
• The external input signal source automatically connect.
• Crystal Gaze™ image processing engine: image motion compensation, color enhancement processing
• Dry bonding with Point-to-point fine display technology. Color: L/R：Black, T/Down:Dark pewter.
• Intelligent gesture, five fingers supported. Touch object >1.6mm. Smart Writing APK for writing.
• Flexible formats supported : MPEG, MPEG-2, MPEG-4, H.264, RMVB, MOV
• Sidebar buttons and gestures for voter, timer, screen capture, child lock, screen recording, photo taking, touch sensing, smart eye protection.
• Built in 8MP Camera, NFC module for lock screen, other applications shortcut.
• The built-in 8-element mic array has a maximum Pickup distance of 8m.
• 8 Array Mic, 8 million non noice reduction built-in camera support Face tracking, Sound localization

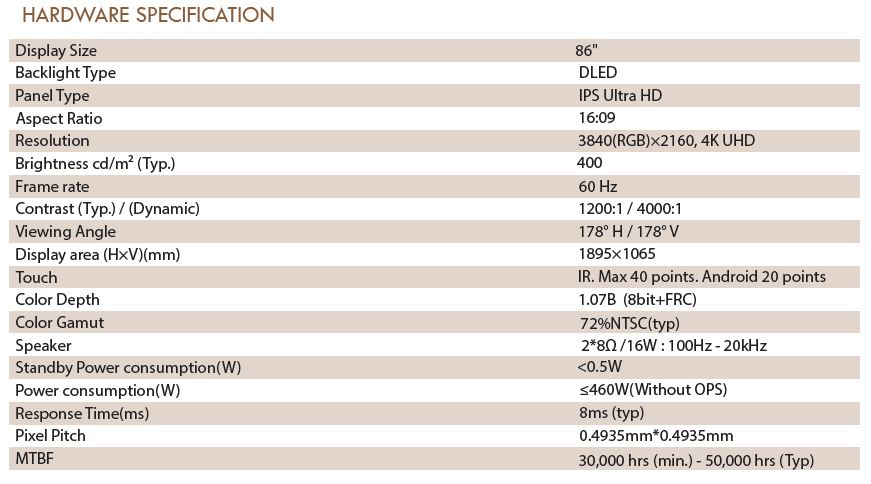

HARDWARE SPECIFICATION

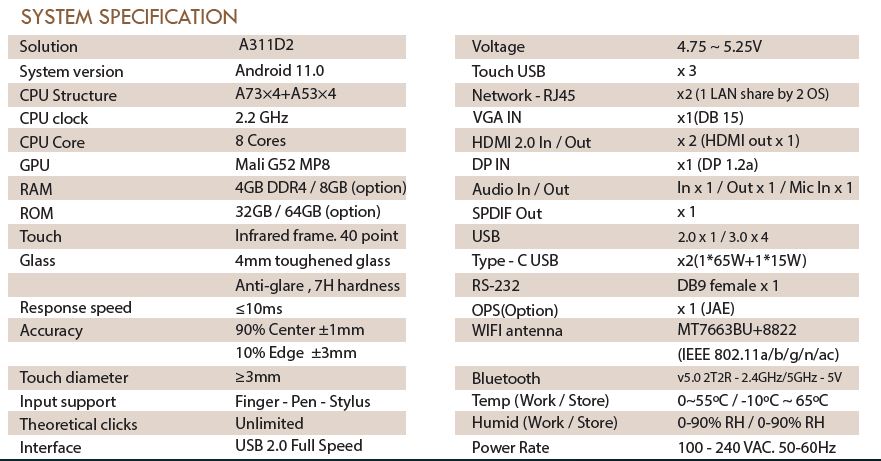

SYSTEM SPECIFICATION

APPLICATION
