Description

FEATURES

  •  Supports USB 2.0 protocol, transmission rate up to 480Mbps
  • Supports extend distance up to 50 meters /164ft via CAT 5e/6 cable (Note: The transmission distance can only up to 40 meters / 131.2ft for some USB 2.0 Hub)
  • Supports one USB-B port input in transmitter
  • Supports two USB 2.0 ports output in receiver
  • Transmitter is powered supply by USB-B port’s device
  • Receiver is powered supply by connecting 5V/1A power adapter
  • Simple plug and play, no drive and setting installation required
  • Compact design for easy and flexible installation

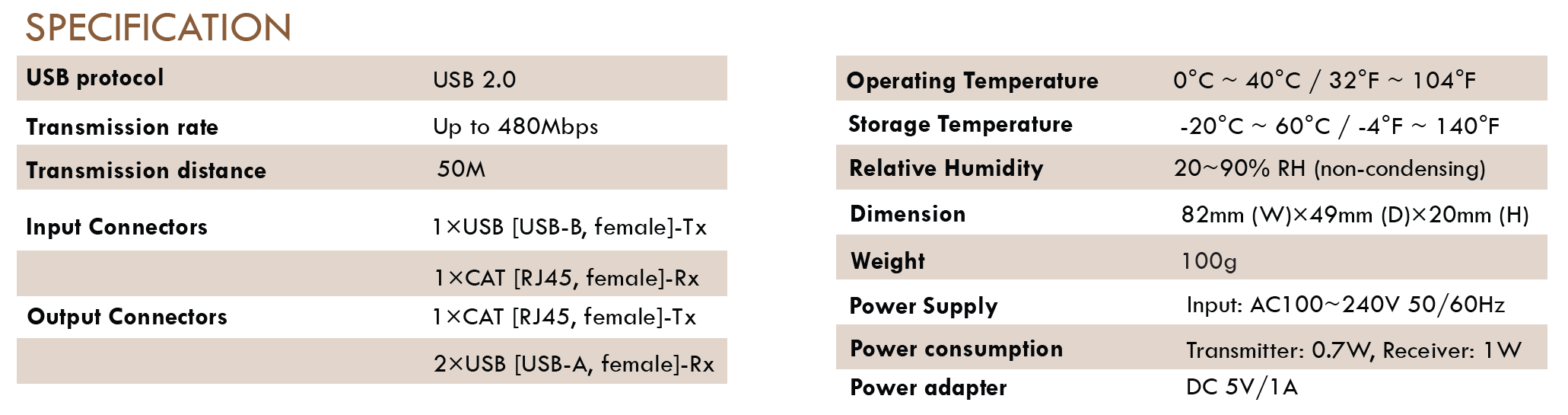

Specification

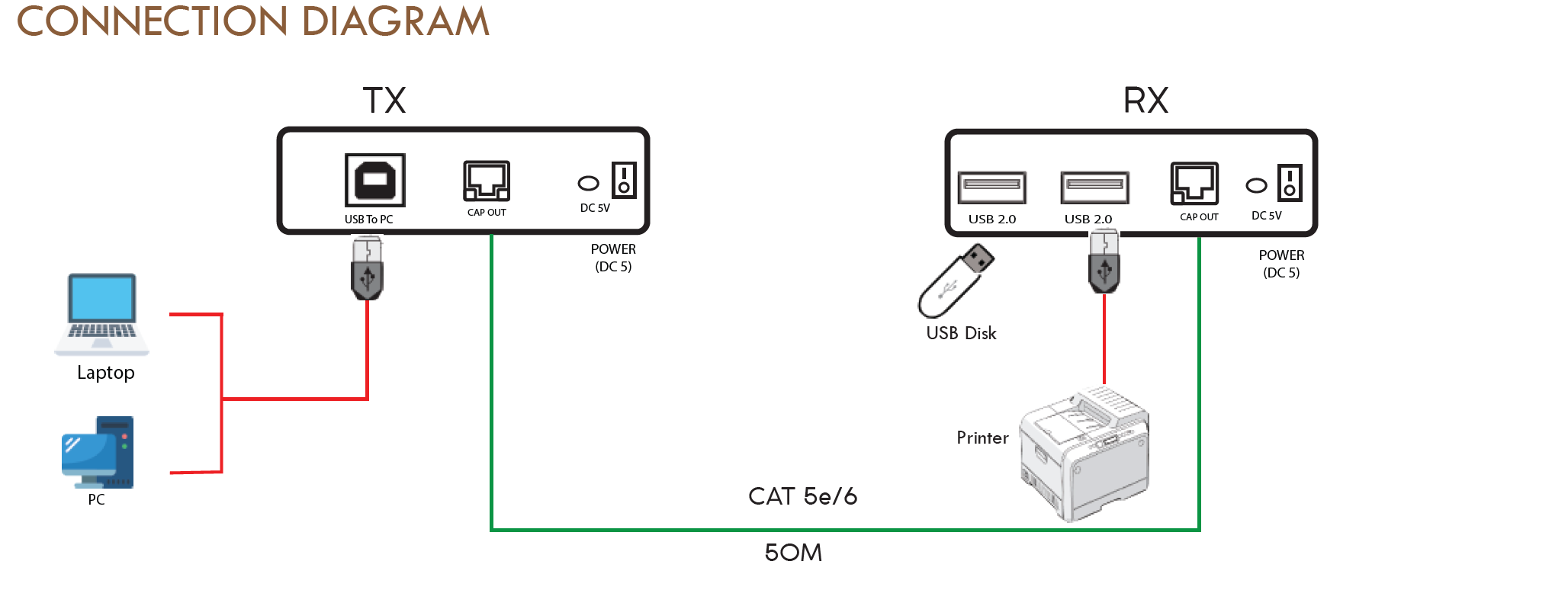

CONNECTION DIAGRAM
