Description
Why choose ANGUSTOS Pro-AV ?
We can provide you the best solution that suits your TVs, interactive screens, meeting room high-end projector, digital signage and videowall system. We
do not just simply sell the equipments but also a smart solution that is just as well designed as it is functional. Solutions that guarantee and define our
brand:
•Ease-of-use
•Design
•Innovation
•Reliability
•Ease-of-installation.
To help you find the exact solution you need, Angustos has an extensive product range that is possible to compose a solution for nearly every Pro
AV application. Our highly skill solution teams are happy to help you to quickly find the best solution for your installation, saving you the time and
effort and hassle for complex system.
FEATURES
- Shows HDMI source on SDI display.
- SDI interface operates at bitrates of 2.970 Gbit/s and 270 Mb/s.
- Supports HDMI input timings: 1080P@60Hz .
- Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s).
- 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s.
- 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s).
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI).

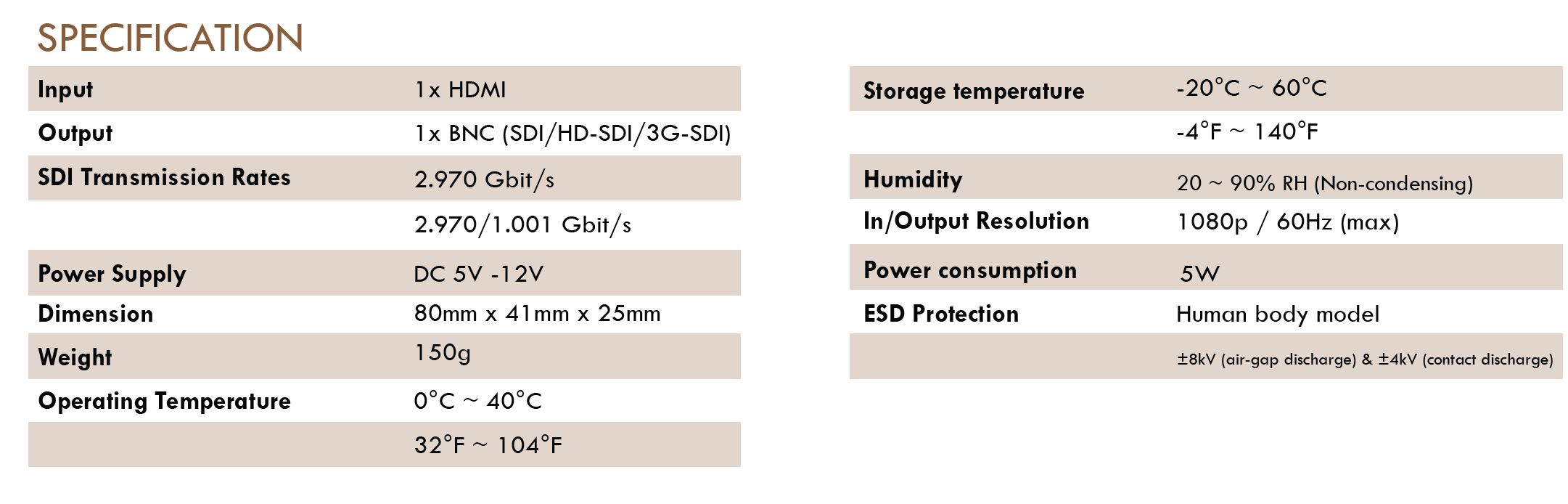

Specification

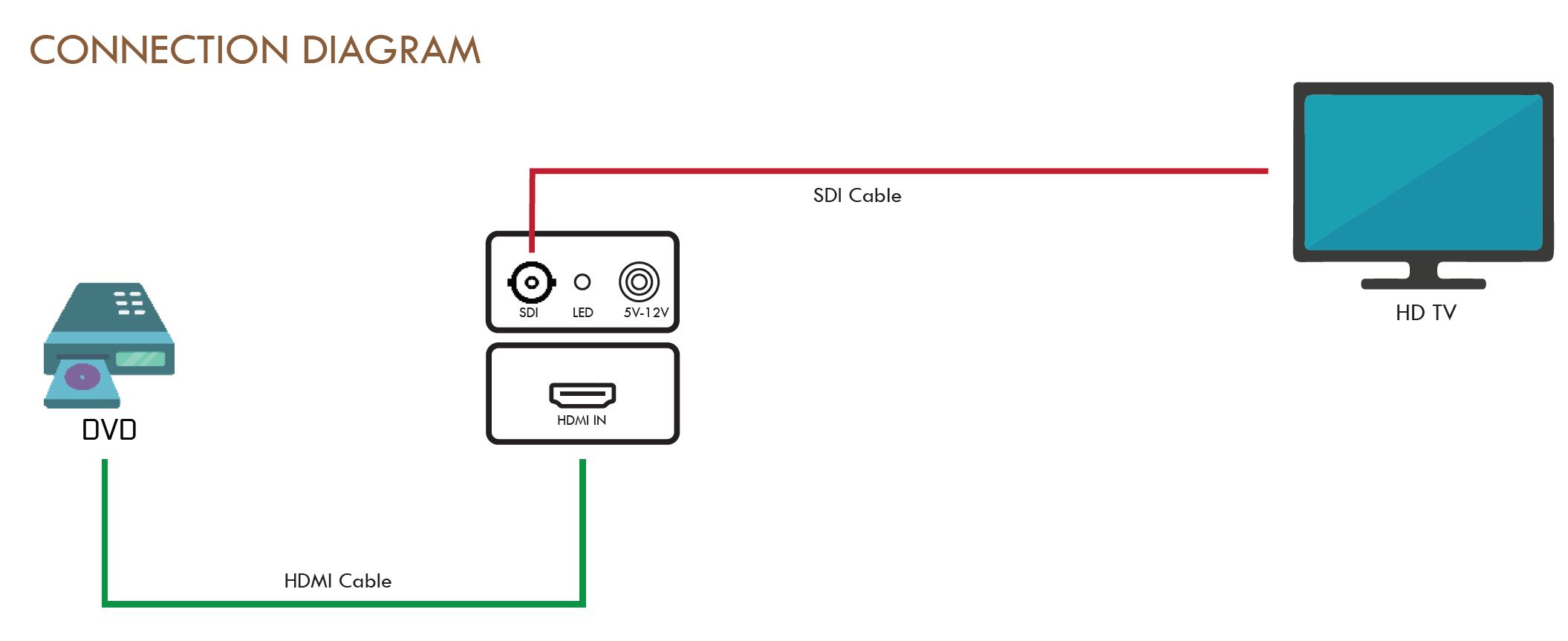

CONNECTION DIAGRAM
DOWNLOAD
General Inquiries
There are no inquiries yet.
