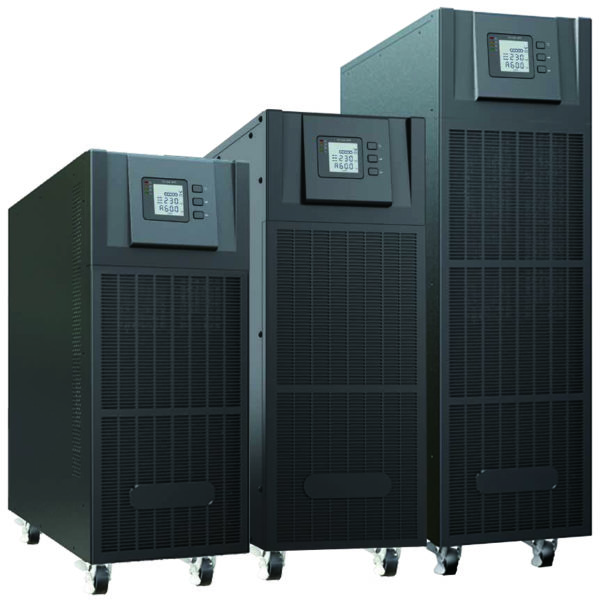

Raptor 3:3 Phase 3:3 phase PF 0.9

Description

High power density design
N+X parallel redundancy,support maximum 4 units in parallel
Online double conversion with DSP control
Input current harmonic: ＜3%
Wide input voltage range: 208~478Vac
Wide input frequency range 40~70Hz
Optimization battery group, the quantity of battery
10~30kVA: 16/18/20pcs (30~50pcs supportable)
40kVA: 30~50pcs
Maximum charging current up to 20A (Settable)
Dual input source (Optional for standard unit)
Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD are optional
Versatile LCD human-computer interface
Generator compatible
ECO mode operation for energy saving
Intelligent fan speed regulation
Self-testing when UPS startup
50/60Hz frequency converter mode
Cold start
The output can meet 100% unbalanced load
Multiple protection function: short-circuit, overload, overheat, battery overcharge and overdischarge, output low voltage and fan fault alarm
Multiple communication interface: USB, RS232, RS485, Parallel port, Dry contact, Intelligent slot, SNMP card(Optional), Relay card (Optional), Battery temperature
sensor (Optional)
