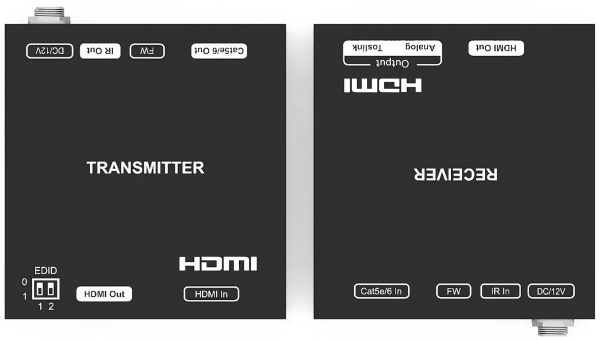

KVE807K6 – HDMI 4K Extender With Loop Out, Audio Extraction, Dual POC

Description

• HDMI2.0 Extender, Bandwidth 18Gbps, HDR10, Power over Cable
  (PoC) allows one power adapter to power both the TX & RX units
• Transmit up to 70m under [email protected] YUV4:4:4,
  90m under [email protected]/1080P over single Cat5e/6 cable
• 1x HDMI loop out on transmitter
• Support EDID management
• Support wide band IR Pass through
• HDMI audio sampling rate up to 192KHz, max LPCM 7.1 channel
• Support S/PDIF and PCM2.0 analog audio extraction
  Support3.5mm and Toslink Audio Out
• Support Dolby True HD, PCM and DTS-HD master audio
• Support Micro USB port to upgrade new firmware

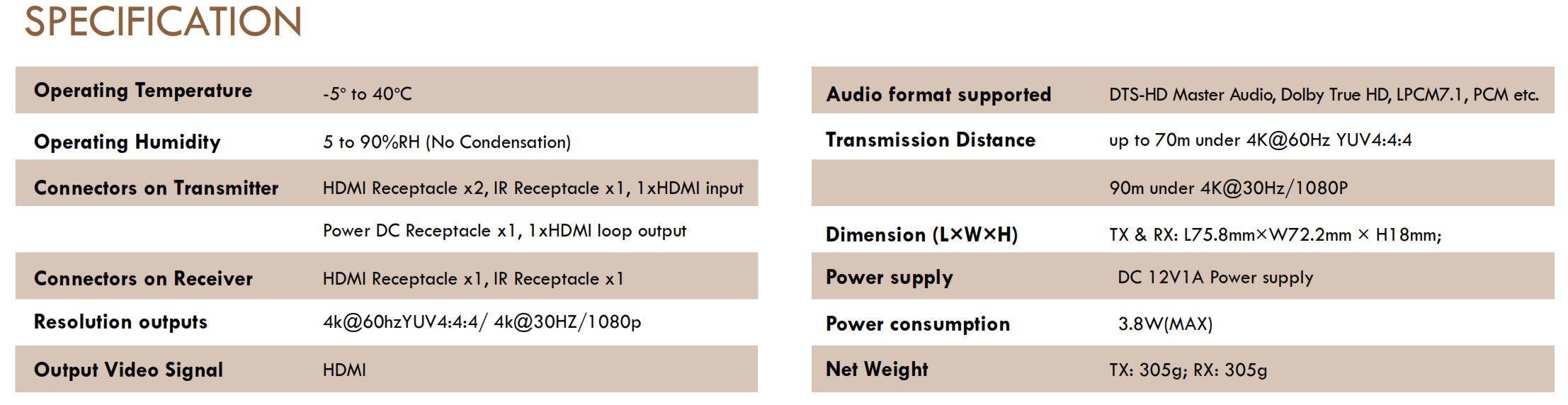

Specification

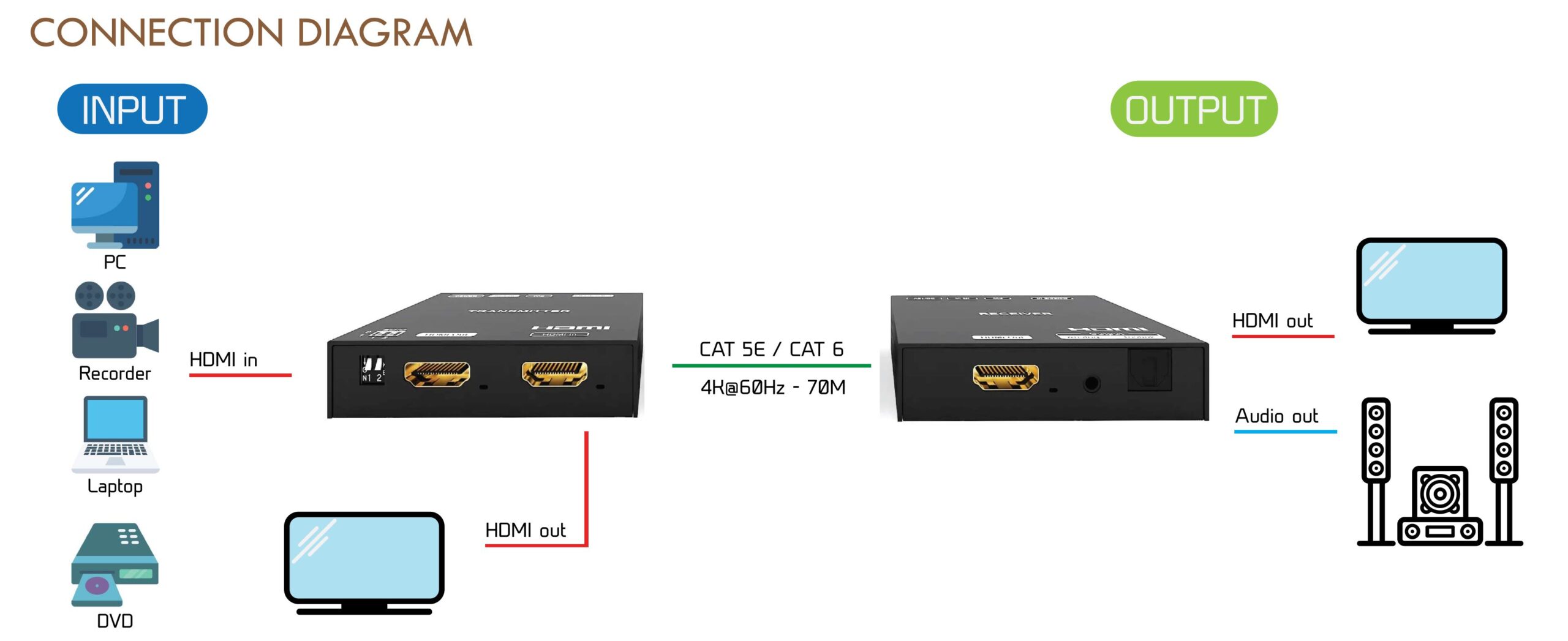

CONNECTION DIAGRAM

DOWNLOAD
